Shop All Engine-Driven Compressor Controls
Control Devices

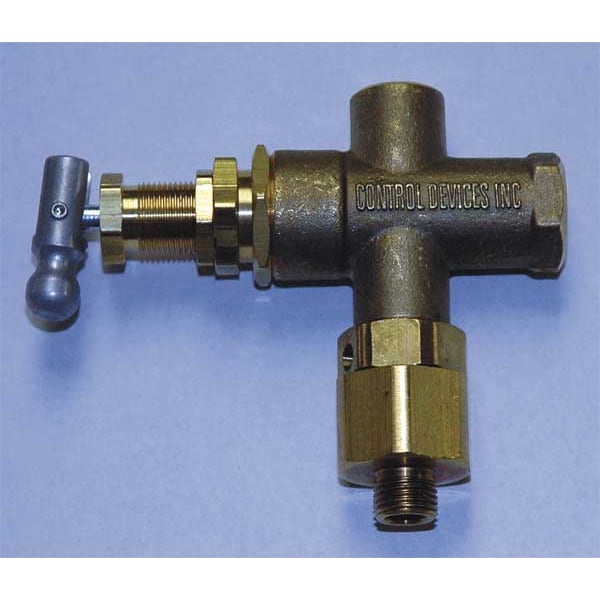

Venting Pilot Valve

original price: $56.55
7% off
new price: $52.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Spring Material Stainless Steel
  • Inlet Type NPT
  • Ball Material Stainless Steel
  • Outlet Type NPT
  • Body Material Brass
See all product information

Product Information

Dimensions

Outlet Size 1/8 in
Exhaust Size 1/4 in
Inlet Size 1/4 in

Details

Item Venting Pilot Valve
Spring Material Stainless Steel
Inlet Type NPT
Ball Material Stainless Steel
Outlet Type NPT
Body Material Brass
Minimum Preset Pressure 60 psi
Maximum Air Flow 20 scfm
Series P25
Maximum Operating Pressure 115 psi
Connection Type NPT
Minimum Operating Pressure 95 psi
Adjustable Pressure Yes
Includes 1/4 in NPT Inlet, 1/8 in NPT Outlet, Mounting Boss Tapped with 3/8 in-16 UNC Thread
Maximum Operating Temperature 400 Degrees F

Description

Venting Pilot Valve, Inlet Size 1/4 in, Inlet Type NPT, Outlet Size 1/8 in, Outlet Type NPT, Exhaust Size 1/4 in, Minimum Preset Pressure 60 psi, Maximum Operating Pressure 115 psi, Minimum Operating Pressure 95 psi, Adjustable Pressure Yes, Maximum Air Flow 20 scfm, Body Material Brass
