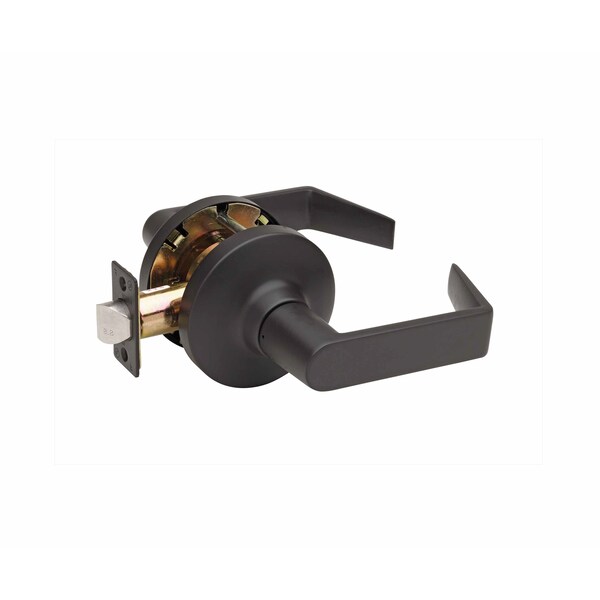

Avery Grade 1 Lever Passage Wfl Ul, Bronze (Discontinued)
- Mfr # AL7220 10B
- Zoro # G9463381
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
AL7220 10B
Zoro #
G9463381
UPC #
878898005045
Country of Origin
Taiwan, Province of China
Dimensions
Required Door Thickness
Min 1-3/8" - Max 1-3/4"
Details
Backset
Fixed 2-3/4" backset
Electrical/Mechanical
Mechanical
For Use With
Standard Residential and Commercial doors
Includes
Hardware and instructions
Finish
Oil Rubbed Bronze
Color
Oil Rubbed Bronze
Standards
ANSI Grade-1
Application
Retrofit or New Construction
Features
All Metal Construction
Material
Steel, Brass and Zinc
Item
Passage Lever
Fire Rated
U.L 3HR Fire Rated
Function
Passage
Strike
ASA LS22 4-7/8'' high x 1-1/4" wide strike with lip
Warranty
Limited Lifetime
Latch Face
Standard Square-Corner Mortise Faceplate
ADA Compliant
Yes
Description
The AL7220 10B is the product of a better design, higher quality materials, and better manufacturing. Each lever features a solid steel chassis, adjustable steel latches with a square drive, and a solid steel latch face. The advanced finishing process lends to a beautiful rich finish that lasts. ANSI/BHMA, ADA and U.L. compliant this product is ideal for most commercial applications
