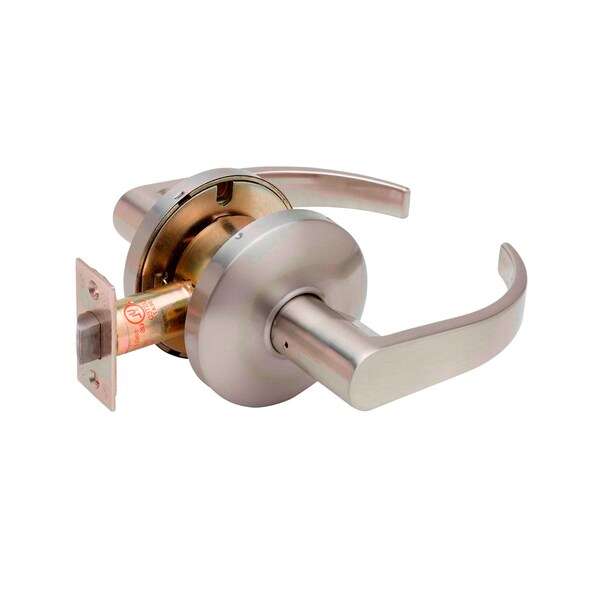

Erin Grade 2 Cylindrical Lever Passage Nfl Ul, Satin Stainless (Discontinued)
- Mfr # EL6220SS
- Zoro # G9461379
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EL6220SS
Zoro #
G9461379
UPC #
878898008428
Country of Origin
Taiwan, Province of China
Dimensions
Required Door Thickness
Min 1-3/8" - Max 1-3/4"
Details
Backset
Fixed 2-3/4" backset
Electrical/Mechanical
Mechanical
For Use With
Standard Residential and Commercial doors
Includes
Hardware and instructions
Finish
Satin Stainless
Material
Steel, Brass and Zinc
Standards
ANSI Grade-2
Features
All Metal Construction
Color
Satin Stainless
Application
Retrofit or New Construction
Fire Rated
U.L 3HR Fire Rated
Item
Passage Lever
Latch Face
Standard Square-Corner Mortise Faceplate
Function
Passage
ADA Compliant
Yes
Warranty
Limited Lifetime
Strike
ASA LS22 4-7/8'' high x 1-1/4" wide strike with lip
Description
The EL6220SS is the product of a better design, higher quality materials, and better manufacturing. Each lever features a solid steel chassis, adjustable steel latches with a square drive, and a solid steel latch face. The advanced finishing process lends to a beautiful rich finish that lasts. ANSI/BHMA, ADA and U.L. compliant this product is ideal for most commercial applications
