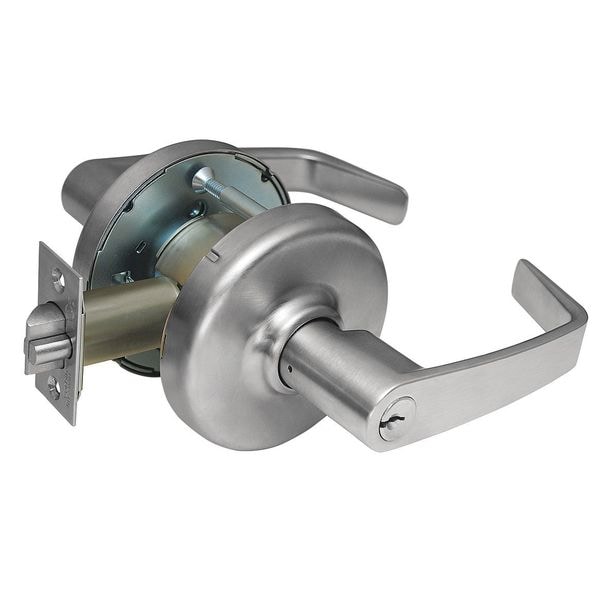

Corbin Russwin Lever Lockset, Mechanical, Entrance CLX3351 NZD 626 - main

Lever Lockset, Mechanical, Entrance

  • Mfr # CLX3351 NZD 626

  • Zoro # G4593793

product price: $558.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Entrance
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CLX3351 NZD 626
Zoro #
G4593793
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in to 2 in
For Door Thickness
1-3/4 to 2"
Door Thickness - Maximum
2 1/4 in
Door Thickness - Minimum
1 3/4 in
Strike Plate Thickness
1 1/4 in
Strike Plate Lip Length
1 1/4 in
Strike Plate Height
4 7/8 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Entrance
Lockset Grade
1
Style
3300 Right Angle
Lockset Finish
Satin Chrome
Keyway Type
L4
Key Type
Keyed Different
Number of Keys
2
Lockset Performance Strength
Extra Heavy Duty
Lockset Fire Rating
3 hr
Strike Type
Curved Lip
Handle Material
Brass, Bronze, Stainless Steel, Steel
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Location Type
Healthcare, Institutional
Backset
2 3/4 in
Key Material
Nickel Silver
Ligature Resistant
No
Item
Door Lockset
Standards
ANSI/BHMA Certified, cUL Listed, EPD, UL Listed
Series
3300
ADA Compliant
Yes
Strike Dim.
4-7/8 in x 1-1/4 in
Finish
Satin Chrome
Fire Rated
3 hr.
Includes
Hardware
Grade
1
Keying
Keyed Different
Features
Independent Return Springs
Cylinder Core Type
Conventional Core Cylinder
Type
Extra Heavy Duty Cylindrical
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration)
Visual Indicator Message
No Message
Material
Steel, Stainless Steel, Brass and Bronze
Case Material
Steel with Zinc Dicromate plating
Function
Entry
Pins
6
Cylinder
Yes
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Hand Orientation
Non-Handed
UL Fire Rating
UL10C
Knob/Handle Material
Solid Cast Zinc
Latch Bolt/Dead Bolt
Latch Bolt
Trim Plate Shape
Round
Lockset Type
Mechanical
Lockset Style
3300 Right Angle
Locking/Unlocking Access - Outside
Keyway
Locking/Unlocking Access - Inside
Thumb Turn
Application
Commercial, Industrial
ANSI/BHMA Finish
Satin Chromium-Plated
Includes Core
Core Included
Fire Rating
3 hr
Performance Grade
1
Ligature-Resistant
Not Ligature-Resistant
ANSI Grade
1
Lockset Function ANSI Code
F109

Description

Lever Lockset, Extra Heavy Duty Cylindrical, Institutional, Health Care, 3300 Series, Right Angle Style, Satin Chrome Finish, Function Office Entrance, Keyway Type L4, Grade 1, Material Steel, Stainless Steel, Brass and Bronze, For Door Thickness 1-3/4 to 2 In., Backset 2-3/4 In., Front Size Dimension 2-1/4 x 1-1/8 In., Crossbore Size 2-1/8 In., Key Type Nickel Silver, Number of Keys 2, Pins 6, ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, Cylinder Yes, Keying Different
