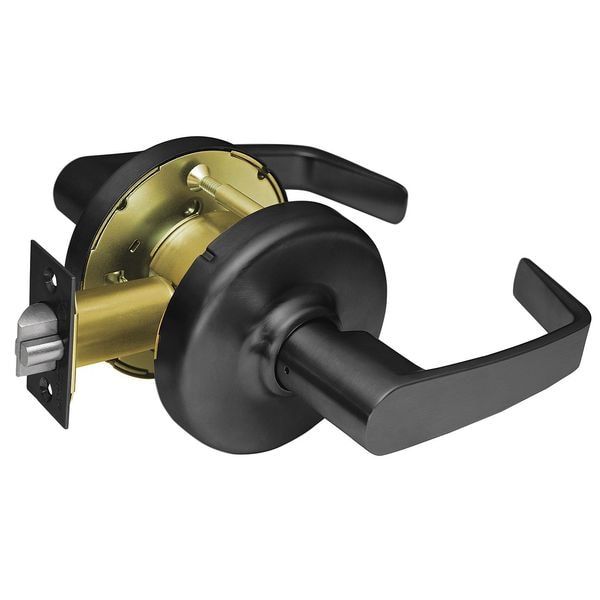

Corbin Russwin Lever Lockset, Mechanical, Passage, Grade 1 CLX3310 NZD 10B - main

Lever Lockset, Mechanical, Passage, Grade 1

  • Mfr # CLX3310 NZD 10B

  • Zoro # G4558967

product price: $441.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Key Type
Not Keyed
Keyway Type
None
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CLX3310 NZD 10B
Zoro #
G4558967
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in to 2 in
For Door Thickness
1-3/4 to 2"
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/4 in
Strike Plate Lip Length
1 1/4 in
Strike Plate Thickness
1 1/4 in
Door Thickness - Maximum
2 1/4 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Key Type
Not Keyed
Keyway Type
None
Location Type
Healthcare, Institutional
Lockset Function
Closet, Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Series
3300
Style
3300 Right Angle
Finish
Oxidized Oil Rubbed Bronze
Lockset Finish
Oil Rubbed Bronze
Ligature Resistant
No
Lockset Fire Rating
3 hr
ADA Compliant
Yes
Handle Material
Brass, Bronze, Stainless Steel, Steel
Mortise / Cylindrical
Cylindrical
Item
Door Lockset
Strike Dim.
4-7/8 in x 1-1/4 in
Lockset Performance Strength
Extra Heavy Duty
Standards
ANSI/BHMA Certified, cUL Listed, EPD, UL Listed
Strike Type
Curved Lip
Grade
1
Keying
Keyed Different
Fire Rated
3 hr.
Number of Keys
0
Features
Independent Return Springs
Application
Commercial, Industrial
Function
Passage
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Type
Extra Heavy Duty Cylindrical
Material
Steel, Stainless Steel, Brass and Bronze
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration)
Visual Indicator Message
No Message
Case Material
Steel with Zinc Dicromate plating
Includes Core
Core Not Included
Locking/Unlocking Access - Outside
Not Lockable
Trim Plate Shape
Round
Lockset Type
Mechanical
Performance Grade
1
Knob/Handle Material
Bronze
Locking/Unlocking Access - Inside
Not Lockable
Hand Orientation
Non-Handed
Latch Bolt/Dead Bolt
Latch Bolt
ANSI/BHMA Finish
Dark Oxidized Satin Bronze, Oil Rubbed
UL Fire Rating
UL10C
Lockset Style
3300 Right Angle
Fire Rating
3 hr
ANSI Grade
1
Ligature-Resistant
Not Ligature-Resistant
Lockset Function ANSI Code
F75

Description

Lever Lockset, Extra Heavy Duty Cylindrical, Institutional, Health Care, 3300 Series, Right Angle Style, Oxidized Bronze, Oil Rubbed Finish, Function Passage, Grade 1, Material Steel, Stainless Steel, Brass and Bronze, For Door Thickness 1-3/4 to 2 In., Backset 2-3/4 In., Front Size Dimension 2-1/4 x 1-1/8 In., Crossbore Size 2-1/8 In., ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, Standards ANSI A156.2 Series 4000 grade 1, A117.1 Accessbility Code, Federal FF-H-106C, California Reference Code
