  13. Lever Lockset, Mechanical, Privacy, Grade 1

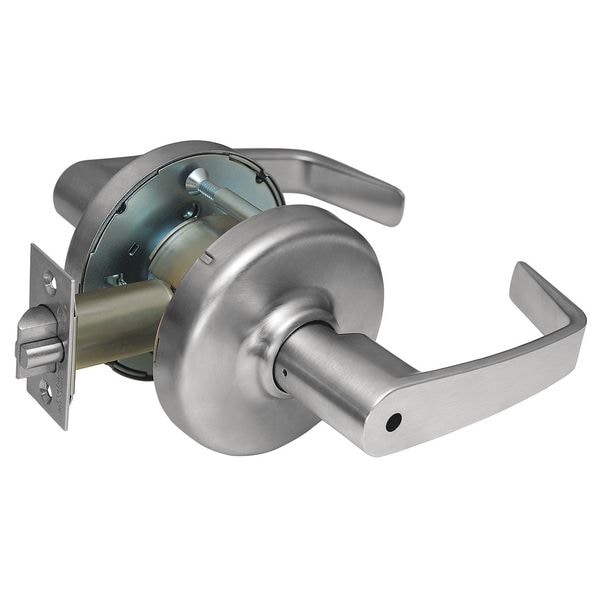

Corbin Russwin Lever Lockset, Mechanical, Privacy, Grade 1 CLX3320 NZD 626 - main

Lever Lockset, Mechanical, Privacy, Grade 1

  • Mfr # CLX3320 NZD 626

  • Zoro # G4541905

product price: $477.99
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Healthcare, Institutional
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CLX3320 NZD 626
Zoro #
G4541905
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in to 2 in
For Door Thickness
1-3/4 to 2"
Door Thickness - Minimum
1 3/4 in
Door Thickness - Maximum
2 1/4 in
Strike Plate Thickness
1 1/4 in
Strike Plate Height
4 7/8 in
Strike Plate Lip Length
1 1/4 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Healthcare, Institutional
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
Series
3300
Backset
2 3/4 in
Strike Dim.
4-7/8 in x 1-1/4 in
Includes
Hardware
Handle Material
Brass, Bronze, Stainless Steel, Steel
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Lockset Performance Strength
Extra Heavy Duty
Ligature Resistant
No
Mortise / Cylindrical
Cylindrical
Mortise/Cylindrical
Cylindrical
Lockset Grade
1
Style
3300 Right Angle
Lockset Fire Rating
3 hr
Key Type
Not Keyed
Strike Type
Curved Lip
Lockset Handle Type
Lever
ADA Compliant
Yes
Lockset Finish
Satin Chrome
Standards
ANSI/BHMA Certified, cUL Listed, EPD, UL Listed
Number of Keys
0
Keying
Keyed Different
Features
Independent Return Springs
Number of Pins
6
Fire Rated
3 hr.
Keyway Type
None
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Material
Steel, Stainless Steel, Brass and Bronze
Type
Extra Heavy Duty Cylindrical
Function
Privacy
Application
Commercial, Industrial
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration)
Visual Indicator Message
No Message
Case Material
Steel with Zinc Dicromate plating
Lockset Style
3300 Right Angle
Includes Core
Core Not Included
Latch Bolt/Dead Bolt
Latch Bolt
Ligature-Resistant
Not Ligature-Resistant
Trim Plate Shape
Round
Locking/Unlocking Access - Outside
Not Lockable
Locking/Unlocking Access - Inside
Push Button
UL Fire Rating
UL10C
ANSI Grade
1
Knob/Handle Material
Solid Cast Zinc
ANSI/BHMA Finish
Satin Chromium-Plated
Fire Rating
3 hr
Performance Grade
1
Lockset Type
Mechanical
Lockset Function ANSI Code
F76A
Hand Orientation
Non-Handed

Description

Lever Lockset, Extra Heavy Duty Cylindrical, Institutional, Health Care, 3300 Series, Right Angle Style, Satin Chrome Finish, Function Privacy, Grade 1, Material Steel, Stainless Steel, Brass and Bronze, For Door Thickness 1-3/4 to 2 In., Backset 2-3/4 In., Front Size Dimension 2-1/4 x 1-1/8 In., Crossbore Size 2-1/8 In., ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, Standards ANSI A156.2 Series 4000 grade 1, A117.1 Accessbility Code, Federal FF-H-106C, California Reference Code
