  13. Lever Lockset, Mechanical, Privacy, Grade 1

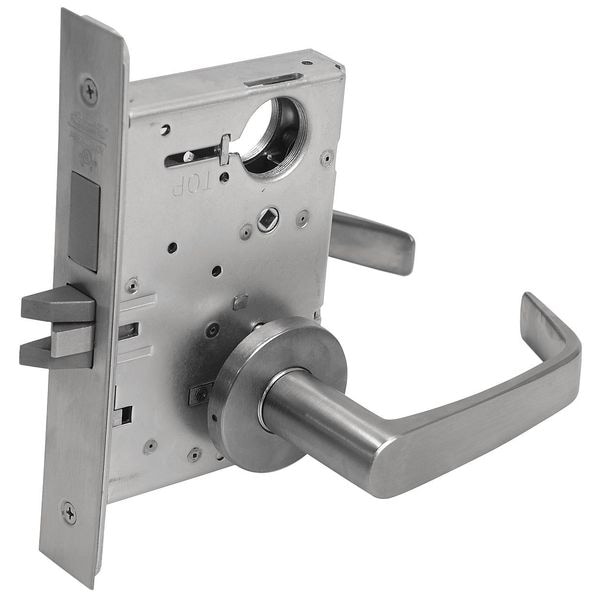

Corbin Russwin Lever Lockset, Mechanical, Privacy, Grade 1 ML2030 NSA 626 - main

Lever Lockset, Mechanical, Privacy, Grade 1

  • Mfr # ML2030 NSA 626

  • Zoro # G4608834

product price: $743.79
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Healthcare, Institutional, School
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ML2030 NSA 626
Zoro #
G4608834
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
For Door Thickness
1-3/4"
Strike Plate Thickness
1 1/4 in
Door Thickness - Maximum
4 in
Strike Plate Lip Length
1 1/8 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Height
4 7/8 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Healthcare, Institutional, School
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
Series
ML2001
Backset
2 3/4 in
Strike Dim.
1-1/4 in x 4-7/8 in
ADA Compliant
Yes
Lockset Handle Type
Lever
Strike Type
Straight Lip
Lockset Fire Rating
3 hr
Standards
ANSI/BHMA A156.13, ASTM E330, cUL Listed, EPD, UL Listed
Mortise/Cylindrical
Mortise
Style
ML2001 Right Angle Flat
Ligature Resistant
No
Key Type
Not Keyed
Lockset Grade
1
Mortise / Cylindrical
Mortise
Lockset Finish
Satin Chrome
Number of Pins
6
Fire Rated
3 hr.
Number of Keys
0
Keyway Type
None
Features
Integrates with Access Control Platforms
Visual Indicator Message
No Message
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration)
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Material
Heavy Guage Steel, Stainless Steel, Brass, Bronze
Handle Type
Lever
Type
Mortise
Function
Privacy
Case Material
Heavy Gauge Chrome Plated Steel
Performance Grade
1
Ligature-Resistant
Not Ligature-Resistant
Latch Bolt/Dead Bolt
Latch Bolt
UL Fire Rating
UL10C
ANSI/BHMA Finish
Satin Chromium-Plated
Lockset Style
NSA Lever
Hand Orientation
Non-Handed
Lockset Function ANSI Code
F19
Locking/Unlocking Access - Inside
Thumb Turn
Includes Core
Core Not Included
Knob/Handle Material
Steel
Application
Commercial
Locking/Unlocking Access - Outside
Not Lockable
Trim Plate Shape
Rectangular
Fire Rating
3 hr
ANSI Grade
1
Lockset Type
Mechanical

Description

Lever Lockset, Mortise, Institutional, Healthcare, Schools, ML2001 Series, Right Angle, Flat, Rose Style, Satin Chrome Finish, Function Privacy, Grade 1, Material Heavy Guage Steel, Stainless Steel, Brass, Bronze, For Door Thickness 1-3/4 In., Backset 2-3/4 In., Front Size Dimension 8 x 1-1/4 In., ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, No Deadbolt, Standards Meets A156.13 Series 1000, Operational and Security Grade 1, Meets A117.1 Accessiblity Code, California State Reference Code
