  6. Dual Reel Spring Return Hose Reel, 3/8 in Hose Diameter, 50 ft Length, 300 psi Max. Pressure, Brass

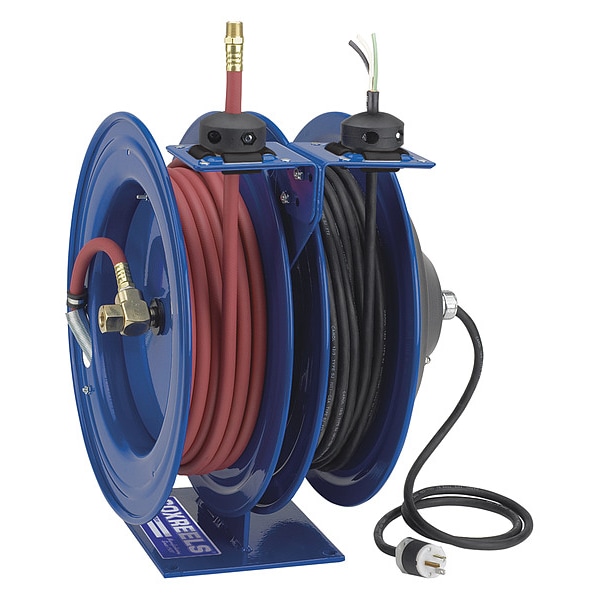

Coxreels Dual Reel Spring Return Hose Reel, 3/8 in Hose Diameter, 50 ft Length, 300 psi Max. Pressure, Brass C-L350-5012-X - main
Shop COXREELS

Dual Reel Spring Return Hose Reel, 3/8 in Hose Diameter, 50 ft Length, 300 psi Max. Pressure, Brass

  • Mfr # C-L350-5012-X

  • Zoro # G0054918

product price:  $1,022.99
/ea
Item requires special delivery charges. A $90.00 per item surcharge will be applied.

Key Features

Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Cord, Hose
Hose Inside Dia.
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
C-L350-5012-X
Zoro #
G0054918
UPC #
-
Country of Origin
United States

Dimensions

Hose Inside Dia.
3/8 in
Overall Height
18 5/8 in
Hose Length
50 ft
Overall Width
16 in
Overall Length
17 in
Reel Diameter
17 in
AC Cord Length
50 ft
Reel Width
16 in
Retractable Cord Length
50 ft
Fitting Size
3/8 in x 3/8 in
Mount Base Width
8 in
Swivel Outlet Thread Size
3/8 in - 18
Swivel Outlet Size
3/8 in
Hose 1 Fitting A Size
3/8 in
Hose 1 Outside Diameter
5/8 in
Hose 1 Inside Diameter
3/8 in
Mount Hole Diameter
1/2 in
Mounting Hole Center to Center Height
8 in
Overall Dimensions
17 in L x 16 in W x 18 5/8 in H
Hose 1 Fitting B Size
3/8 in
Swivel Inlet Size
3/8 in
Mounting Hole Center to Center Width
7 in
Feeder Cord Length
5 ft
Swivel Inlet Thread Size
3/8 in - 18
Hose 1 Length
50 ft
Mount Base Height
9 in

Details

Item
Dual Reel Spring Return Hose Reel
Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Cord, Hose
Hose End Configuration
3/8 in MNPT x 3/8 in MNPT
Hose Material
PVC
Mounting
Ceiling and Vehicles, Floor, Wall
Reel Color
Blue
Features
1 in Solid Steel Axle, Chip Resistant CPC Powder Coat Finish, CNC Spun Discs with Strength Bead and Rolled Edge, Each Reel Operates Independently, Heavy Gauge 1/4 in Steel Base & Support Post For Maximum Stability, Single Pedestal Reel, Solid One Piece, Stainless Steel Ratchet Pawl and Spring
Swivel Material
Brass
Phase
Single Phase
Wire Gauge (AWG)
12
Bearings
Permanently Lubricated
Plug Type
NEMA 5-20P
Amps
20 A
Seal Type
Nitrile
Number of Conductors
2
Receptacle Type
No Accessory
Reel Inlet
3/8 in (F)NPT
Voltage
115 V AC
Latch
Locking
Finish - Hose Reels
Powder Coated
Max. Temp.
150 Degrees F
Duty Rating
Heavy Duty
Cord Current
20 A
Hose 1 Color
Red
Feeder Cord Ending
Grounding Plug
Hose 1 Fitting A Type
NPT
Fasteners Included
No
Include Hose Stop
Yes
Reel Finish
Powder Coated
Number of Outlets
2
Reel Material
Steel
Cord Gauge
12 AWG
Base Motion Type
Stationary
Maximum Operating Pressure
300 psi
Speed Limited Retraction
No
Minimum Operating Pressure
0 psi
Swivel Inlet Gender
Female
Hose 1 Fitting A Gender
Male
Swivel Outlet Gender
Female
Feeder Cord Ending Configuration
NEMA 5-20P
Hose 1 Fitting A Material
Brass
Cord Color
Black
Includes Hose
Yes
Hose Reel Type
Wall Mount Hose Reel
Swivel Inlet Type
NPT
Includes Cord
Yes
Weight
83 lb
Hose Return Speed Control
No
Number of Guide Arms
Single Arm
Bearing Construction
Permanently Lubricated
Maximum Operating Temperature
150 Degrees F
Retractable Cord Ending Configuration
NEMA 5-20P
Swivel Outlet Type
NPT
Spiral Hose Guard
No
Fitting Type
Cord x Cord, NPT x NPT
Combination Type
Air/Electric
Seal Material
Nitrile
Minimum Operating Temperature
-15 Degrees F
Hose 1 Cover Material
PVC
Includes Leader Hose
No
Hose Reel Primary Application
Air, Electric
Hose 1 Fitting B Type
NPT
Hose 1 Fitting B Gender
Male
Hose 1 Tube Material
PVC
For Dual Hose
No
Number of Mount Holes
4
Hose 1 Fitting B Material
Brass
Standards
CE
Latch Type
Locking
Pedestal Type
Single Pedestal
Hose Capacity
50 ft (3/8 in ID)
Retractable Cord Ending
Single Plug

Description

Dual Reel Spring Return Hose Reel, Air, Electric, 0 psi, 300 psi, Combination Type Air/Electric, Hose Capacity 50 ft (3/8 in ID), Includes Hose Yes, Mounting Location Bench, Floor, Truck, Wall, Overall Height 18 5/8 in, Overall Length 17 in, Overall Width 16 in, Feeder Cord Ending Configuration NEMA 5-20P, Retractable Cord Ending Configuration NEMA 5-20P, Drive Type Spring Return, Enclosed No, Cord Color Black, Cord Current 20 A, Cord Gauge 12 AWG, Voltage 115 V AC, Seal Material Nitrile
