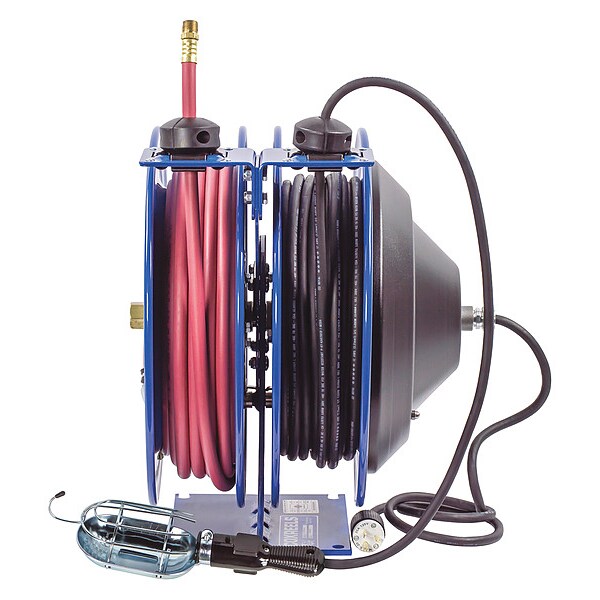

Coxreels Dual Reel Spring Return Hose Reel, 3/8 in Hose Diameter, 50 ft Length, 300 psi Max. Pressure, Brass C-L350-5016-E - main

Dual Reel Spring Return Hose Reel, 3/8 in Hose Diameter, 50 ft Length, 300 psi Max. Pressure, Brass

  • Mfr # C-L350-5016-E

  • Zoro # G0054890

product price:  $936.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Cord, Hose, Incandescent Caged Drop Light with Tool Tap Plug
Hose Inside Dia.
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C-L350-5016-E
Zoro #
G0054890
UPC #
-
Country of Origin
United States

Dimensions

Hose Inside Dia.
3/8 in
Overall Height
18 5/8 in
Hose Length
50 ft
Overall Width
16 in
Overall Length
17 in
Reel Diameter
17 in
AC Cord Length
50 ft
Reel Width
16 in
Hose 1 Fitting B Size
3/8 in
Hose 1 Length
50 ft
Mounting Hole Center to Center Width
7 in
Mount Base Height
9 in
Hose 1 Outside Diameter
5/8 in
Mount Hole Diameter
1/2 in
Mount Base Width
8 in
Feeder Cord Length
5 ft
Swivel Outlet Size
3/8 in
Overall Dimensions
17 in L x 16 in W x 18 5/8 in H
Swivel Inlet Size
3/8 in
Retractable Cord Length
50 ft
Fitting Size
3/8 in x 3/8 in
Hose 1 Inside Diameter
3/8 in
Hose 1 Fitting A Size
3/8 in
Mounting Hole Center to Center Height
8 in
Swivel Outlet Thread Size
3/8 in - 18
Swivel Inlet Thread Size
3/8 in - 18

Details

Item
Dual Reel Spring Return Hose Reel
Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Cord, Hose, Incandescent Caged Drop Light with Tool Tap Plug
Hose End Configuration
3/8 in MNPT x 3/8 in MNPT
Hose Material
PVC
Mounting
Ceiling and Vehicles, Floor, Wall
Reel Color
Blue
Features
1 in Solid Steel Axle, Chip Resistant CPC Powder Coat Finish, CNC Spun Discs with Strength Bead and Rolled Edge, Each Reel Operates Independently, Heavy Gauge 1/4 in Steel Base & Support Post For Maximum Stability, Single Pedestal Reel, Solid One Piece, Stainless Steel Ratchet Pawl and Spring
Swivel Material
Brass
Plug Type
NEMA 5-15P
Reel Inlet
3/8 in (F)NPT
Amps
13 A
Phase
Single Phase
Bearings
Permanently Lubricated
Latch
Locking
Number of Conductors
2
Receptacle Type
Plug
Wire Gauge (AWG)
16
Voltage
115 V AC
Seal Type
Nitrile
Duty Rating
Heavy Duty
Max. Temp.
150 Degrees F
Finish - Hose Reels
Powder Coated
Number of Outlets
2
Feeder Cord Ending
Grounding Plug
Speed Limited Retraction
No
Hose 1 Color
Red
Includes Cord
Yes
Retractable Cord Ending
Single Plug
Maximum Operating Temperature
150 Degrees F
Combination Type
Air/Electric
Hose 1 Cover Material
PVC
Hose Capacity
50 ft (3/8 in ID)
Hose Return Speed Control
No
Cord Current
13 A
Fitting Type
Cord x Cord, NPT x NPT
Hose 1 Fitting A Material
Brass
Include Hose Stop
Yes
Reel Material
Steel
Bearing Construction
Permanently Lubricated
Swivel Outlet Gender
Female
Latch Type
Locking
Minimum Operating Pressure
0 psi
Swivel Outlet Type
NPT
Seal Material
Nitrile
Cord Gauge
16 AWG
Spiral Hose Guard
No
Cord Color
Black
Feeder Cord Ending Configuration
NEMA 5-15P
Number of Guide Arms
Single Arm
Swivel Inlet Type
NPT
Hose 1 Tube Material
PVC
Maximum Operating Pressure
300 psi
Hose 1 Fitting A Type
NPT
Swivel Inlet Gender
Female
Hose 1 Fitting B Material
Brass
Number of Mount Holes
4
For Dual Hose
No
Hose 1 Fitting B Gender
Male
Hose 1 Fitting B Type
NPT
Weight
79 lb
Minimum Operating Temperature
-15 Degrees F
Fasteners Included
No
Standards
CE
Hose 1 Fitting A Gender
Male
Includes Leader Hose
No
Base Motion Type
Stationary
Reel Finish
Powder Coated
Includes Hose
Yes
Hose Reel Type
Wall Mount Hose Reel
Hose Reel Primary Application
Air, Electric
Retractable Cord Ending Configuration
NEMA 5-15R
Pedestal Type
Single Pedestal

Description

Dual Reel Spring Return Hose Reel, Air, Electric, 0 psi, 300 psi, Combination Type Air/Electric, Hose Capacity 50 ft (3/8 in ID), Includes Hose Yes, Mounting Location Bench, Floor, Truck, Wall, Overall Height 18 5/8 in, Overall Length 17 in, Overall Width 16 in, Feeder Cord Ending Configuration NEMA 5-15P, Retractable Cord Ending Configuration NEMA 5-15R, Drive Type Spring Return, Enclosed No, Cord Color Black, Cord Current 13 A, Cord Gauge 16 AWG, Voltage 115 V AC, Seal Material Nitrile
