  11. Hose Reel, Hand Crank, 1" IDx100 ft

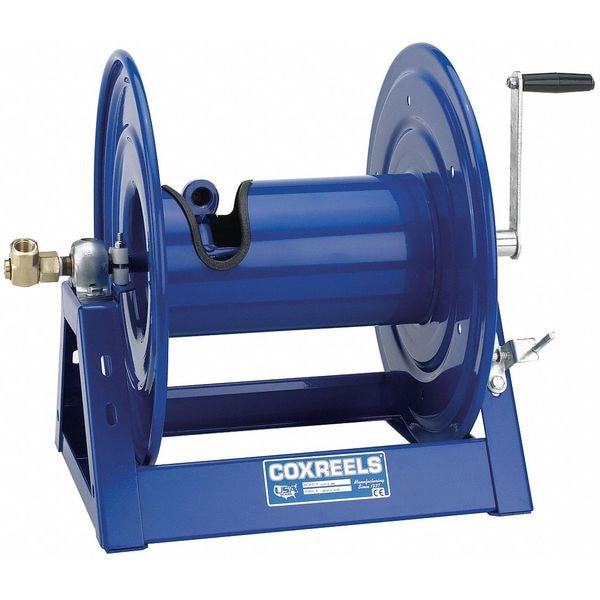

Coxreels Hose Reel, Hand Crank, 1" IDx100 ft 1125-6-100 - main

Hose Reel, Hand Crank, 1" IDx100 ft

  • Mfr # 1125-6-100

  • Zoro # G4523010

product price: $584.99
/ea
Free Shipping & Returns

Key Features

Hose Included
No
Hose Length
100 ft
Hose Inside Dia.
1 in
Reel Inlet
1 in (F)NPT
Hose Outlet
3/4 in (M)NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1125-6-100
Zoro #
G4523010
UPC #
674255824225
Country of Origin
United States

Dimensions

Hose Length
100 ft
Hose Inside Dia.
1 in
Overall Height
18 3/4 in
Overall Length
17 1/2 in
Overall Width
43 3/4 in
Hose Outside Dia.
1 7/16 in
Handle Length
3 1/2 in
Mount Hole Diameter
1/2 in
Mount Base Height
33 3/8 in
Swivel Inlet Size
1 in
Mount Base Width
15 3/8 in
Reel Width
28 in
Mounting Hole Center to Center Height
10 in
Mounting Hole Center to Center Width
13 3/8 in
Swivel Inlet Thread Size
1 in
Swivel Outlet Size
1 in
Overall Dimensions
17 1/2 in L x 43 3/4 in W x 18 3/4 in H
Swivel Outlet Thread Size
1 in
Reel Diameter
17 5/8 in

Details

Hose Included
No
Reel Inlet
1 in (F)NPT
Hose Outlet
3/4 in (M)NPT
Finish
Powder Coated
Duty Rating
Heavy Duty
Max. Temp. Rating
225 Degrees F
Bearings
Permanently Lubricated
Seal Type
Aflas
Housing Material
Steel
Drive Type
Hand Crank
Color
Blue
Mounting
Bench, Floor, Truck, Wall
HP
None
Hose Ends
1 in (M)NPT
Max. Pressure Rating
3000 psi
Item
Hand Crank Hose Reel
Application
For Lawn Care, Pest Control, Grounds Maintenance, Pressure Washing, Steam Cleaning, Spraying operations, washdown, fire protection, water discharge, can be mounted on stationary and mobile units.
Swivel Material
Nickel Plated Steel
Includes
Locking Pin
Features
"A" Frame, Heavy Duty Steel Construction, Outlet Riser
Swivel Outlet Type
NPT
Number of Mount Holes
6
Maximum Operating Pressure
3,000 psi
Includes Gooseneck
Yes
Seal Material
TFE/P
Hose Capacity
100 ft (1 in I.D.)
Bearing Construction
Permanently Lubricated
Weight
69 lb
Includes Hose
No
Hose Reel Primary Application
Air, Chemical Fluid Transfer, Fire Booster Hose, Hydro Seeding, Oil/Lubrication, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water
Swivel Outlet Gender
Female
Reel Color
Blue
Reel Material
Steel
Minimum Operating Temperature
-40 Degrees F
Standards
CE
Reel Finish
Powder Coated
For Dual Hose
No
Enclosed
No
Base Motion Type
Stationary
Swivel Inlet Type
NPT
Hose Reel Type
Wall Mount Hose Reel
Includes Leader Hose
No
Maximum Operating Temperature
250 Degrees F
Fasteners Included
No
Swivel Inlet Gender
Female

Description

Hand Crank Hose Reel, Air, Chemical Fluid Transfer, Fire Booster Hose, Hydro Seeding, Oil/Lubrication, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water, Hose Capacity 100 ft (1 in I.D.), 3,000 psi, Overall Height 18 3/4 in, Overall Length 17 1/2 in, Overall Width 43 3/4 in, Reel Material Steel, Reel Finish Powder Coated, Drive Type Hand Crank, Enclosed No, Includes Hose No, Mounting Location Ceiling, Floor, Truck, Wall, Reel Color Blue, Includes Gooseneck Yes
