Shop All Hand Crank Hose Reels
Speedaire

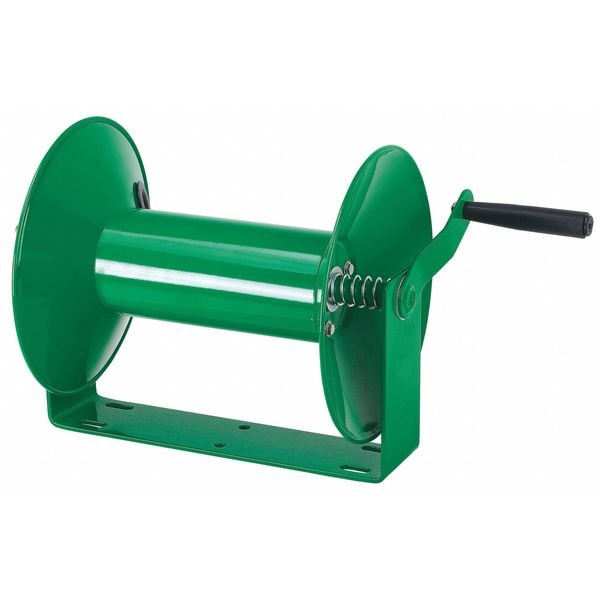

Hand Crank Hose Reel, 100 ft., 3/8" (F)NPT

product price: $64.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Hose Included No
  • Hose Length 100 ft
  • Hose Inside Dia. 3/8 in
  • Reel Inlet 3/8 in (F)NPT
  • Hose Outlet 3/8 in
See all product information

Product Information

Dimensions

Hose Length 100 ft
Hose Inside Dia. 3/8 in
Overall Length 22 in
Hose Outside Dia. 3/8 in
Overall Height 11 5/8 in
Overall Width 10 5/8 in
Mounting Hole Center to Center Height 10 7/8 in
Mount Base Width 3 3/8 in
Mounting Hole Center to Center Width 2 in
Reel Width 12 1/8 in
Overall Dimensions 22 in L x 10 5/8 in W x 11 5/8 in H
Handle Length 4 in
Reel Diameter 10 5/8 in
Swivel Outlet Thread Size 3/8 in - 18
Mount Base Height 13 3/4 in
Swivel Inlet Thread Size 3/8 in - 18
Mount Hole Diameter 3/8 in

Details

Hose Included No
Reel Inlet 3/8 in (F)NPT
Hose Outlet 3/8 in
Finish Powder Coated
Duty Rating Medium Duty
Seal Type Nitrile
Hose Ends 3/8 in
Item Carrete Manual para Manguera
Max. Temp. Rating 150 Degrees F
Max. Pressure Rating 300 psi
Bearings Permanently Lubricated
Color Green
Application Air, Fluids, Water
Swivel Material Brass
Drive Type Hand Crank
Mounting Bench, Floor, Truck, Wall
Housing Material Steel
Weight 41 lb
Number of Mount Holes 4
Latch Type Locking
Maximum Operating Pressure 300 psi
Includes Hose No
For Dual Hose No
Seal Material Nitrile
Reel Color Green
Hose Reel Type Wall Mount Hose Reel
Reel Material Steel
Swivel Outlet Gender Male
Reel Finish Powder Coated
Includes Leader Hose No
Swivel Inlet Gender Female
Minimum Operating Temperature -4 Degrees F
Hose Reel Primary Application Air, Water
Enclosed No
Fasteners Included No
Maximum Operating Temperature 140 Degrees F
Base Motion Type Stationary
Swivel Outlet Type NPT
Hose Capacity 100 ft (3/8 in I.D.)
Swivel Inlet Type NPT
Includes Gooseneck No

Description

Hand Crank Hose Reel, Air, Water, Hose Capacity 100 ft (3/8 in I.D.), 300 psi, Overall Height 11 5/8 in, Overall Length 22 in, Overall Width 10 5/8 in, Reel Material Steel, Reel Finish Powder Coated, Drive Type Hand Crank, Enclosed No, Includes Hose No, Mounting Location Floor, Reel Color Green, Includes Gooseneck No, Hose Reel Type Wall Mount Hose Reel, Swivel Material Brass, Swivel Outlet Gender Male, Swivel Outlet Thread Size 3/8 in - 18
