Shop COXREELS

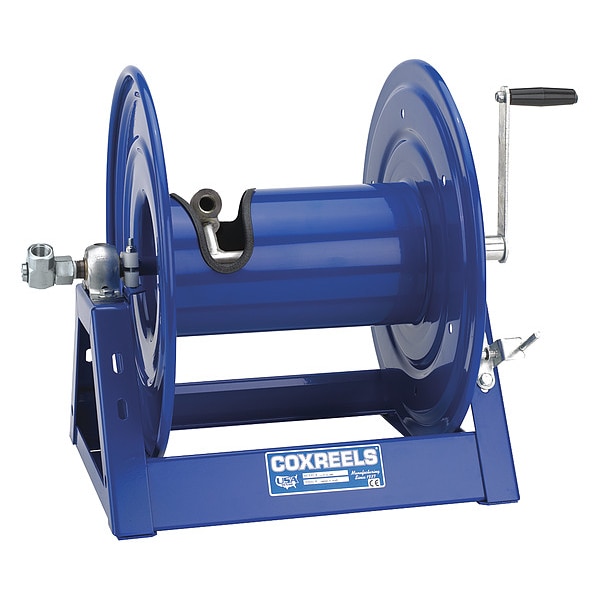

Hose Reel, Hand Crank, 1/2 in (F)NPT, 200ft

  • Mfr # 1125P-4-12

  • Zoro # G1167376

product price:
$
672.99
/ea
Free Shipping & Returns

Key Features

Hose Included
No
Hose Length
200 ft
Hose Inside Dia.
1/2 in
Reel Inlet
1/2 in (F)NPT
Hose Outlet
1/2 in (F)NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1125P-4-12
Zoro #
G1167376
UPC #
-
Country of Origin
United States

Dimensions

Hose Length
200 ft
Hose Inside Dia.
1/2 in
Overall Height
18 5/8 in
Overall Width
25 3/4 in
Overall Length
17 5/8 in
Hose Outside Dia.
7/8 in
Mounting Hole Center to Center Width
15 3/8 in
Overall Dimensions
17 63/100 in L x 25 3/4 in W x 18 63/100 in H
Swivel Outlet Size
1/2 in
Swivel Outlet Thread Size
1/2 in
Swivel Inlet Size
1/2 in
Mount Base Height
15 3/8 in
Handle Length
3 1/2 in
Mount Hole Diameter
1/2 in
Mount Base Width
17 3/8 in
Mounting Hole Center to Center Height
10 in
Swivel Inlet Thread Size
1/2 in
Reel Diameter
6 1/4 in
Reel Width
12 in
Wire Rope Length
17 5/8 in
Length
17 5/8 in

Details

Hose Included
No
Reel Inlet
1/2 in (F)NPT
Hose Outlet
1/2 in (F)NPT
Finish
Powder Coated
Duty Rating
Heavy Duty
Max. Temp. Rating
250 Degrees F
Application
For Lawn Care, Grounds Maintenance, Pest Control, Steam Cleaning, Tree Spraying
HP
None
Seal Type
Nitrile
Color
Blue
Mounting
Bench, Floor, Truck, Wall
Hose Ends
1/2 in (M)NPT
Swivel Material
Stainless Steel
Item
Hand Crank Hose Reel
Bearings
Permanently Lubricated
Includes
Locking Pin
Max. Pressure Rating
6000 psi
Housing Material
Steel
Drive Type
Hand Crank
Reel Material
Steel
Weight
39 lb
Seal Material
Nitrile
Standards
CE
Includes Gooseneck
Yes
Swivel Inlet Type
NPT
Includes Hose
No
Features
"A" Frame, CNC Spun Disc, Heavy Duty Steel Construction, Outlet Riser
Minimum Operating Temperature
-40 Degrees F
Fasteners Included
No
Maximum Operating Temperature
250 Degrees F
Bearing Construction
Permanently Lubricated
Maximum Operating Pressure
4,000 psi
Swivel Outlet Gender
Female
Swivel Outlet Type
NPT
For Dual Hose
No
Hose Capacity
200 ft (1/2 in ID)
Reel Color
Blue
Swivel Inlet Gender
Female
Reel Finish
Powder Coated
Includes Leader Hose
No
Hose Reel Primary Application
Air, Water
Enclosed
No
Number of Mount Holes
6
Base Motion Type
Stationary
Hose Reel Type
Wall Mount Hose Reel

Description

Hand Crank Hose Reel, Air, Water, Hose Capacity 200 ft (1/2 in ID), 4,000 psi, Overall Height 18 5/8 in, Overall Length 17 5/8 in, Overall Width 25 3/4 in, Reel Material Steel, Reel Finish Powder Coated, Drive Type Hand Crank, Enclosed No, Includes Hose No, Mounting Location Ceiling, Floor, Truck, Wall, Reel Color Blue, Includes Gooseneck Yes, Hose Reel Type Wall Mount Hose Reel, Swivel Material Stainless Steel, Swivel Outlet Gender Female, Swivel Outlet Size 1/2 in
