Coxreels

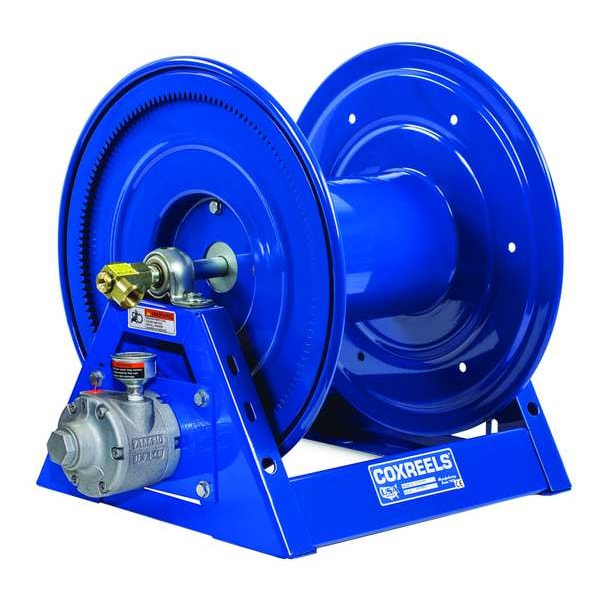

Reel Lp L/H Motor

product price: $774.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Bench, Floor, Truck, Wall
  • Duty Rating Medium Duty
  • Swivel Material Brass
  • Overall Width 17 in
  • Reel Inlet 1/2 in (F)NPT
See all product information

Product Information

Dimensions

Overall Width 17 in
Overall Height 17 in
Mount Base Width 11 3/8 in
Swivel Outlet Size 1/2 in
Swivel Outlet Thread Size 1/2 in - 14
Swivel Inlet Size 1/2 in
Reel Diameter 6 1/4 in
Mounting Hole Center to Center Height 10 in
Reel Width 6 in
Mounting Hole Center to Center Width 9 3/8 in
Swivel Inlet Thread Size 1/2 in - 14
Overall Length 17 5/8 in
Overall Dimensions 17 5/8 in L x 17 in W x 17 in H
Mount Base Height 16 in

Details

Mounting Bench, Floor, Truck, Wall
Duty Rating Medium Duty
Swivel Material Brass
Reel Inlet 1/2 in (F)NPT
Hose Reel Primary Application Air
Includes Hose No
Bearing Construction Permanently Lubricated
Maximum Operating Temperature 250 Degrees F
Hazardous Location No
Vacuum Rating Not Rated
Drive Type Motor Driven
Swivel Outlet Type NPT
Reel Color Blue
Enclosed No
Minimum Operating Pressure 0 psi
For Dual Hose No
Seal Material Nitrile
Reel Material Steel
Includes Gooseneck Yes
Minimum Operating Temperature -40 Degrees F
Item Air Driven Hose Reel
Latch Type Locking
Includes Leader Hose No
Maximum Operating Pressure 3,000 psi
Hose Capacity 100 ft (1/2 in I.D.)
Base Motion Type Stationary
Swivel Outlet Gender Female
Standards CE
Hose Reel Type Floor, Vehicle Mount Hose Reel, Wall Mount Hose Reel
Swivel Inlet Type NPT
Weight 44 lb
Reel Finish Powder Coated
Motor Type Gast 4AM Air Motor
Features Gear Driven Drive System, Heavy Duty Solid Spun Discs With Rolled Edge, Low Profile Risers for No-Hump Winding
Swivel Inlet Gender Female
Horsepower 1 7/10 hp

Description

Air Driven Hose Reel, Air, Motor Type Gast 4AM Air Motor, 3,000 psi, Minimum Operating Pressure 0 psi, Hose Capacity 100 ft (1/2 in I.D.), Drive Type Motor Driven, Includes Hose No, Mounting Location Bench, Floor, Truck, Wall, Overall Height 17 in, Overall Length 17 5/8 in, Overall Width 17 in, For Dual Hose No, Hose Reel Type Floor, Vehicle Mount Hose Reel, Wall Mount Hose Reel, Enclosed No, Includes Gooseneck Yes, Reel Material Steel, Reel Finish Powder Coated, Reel Color Blue
