Shop COXREELS

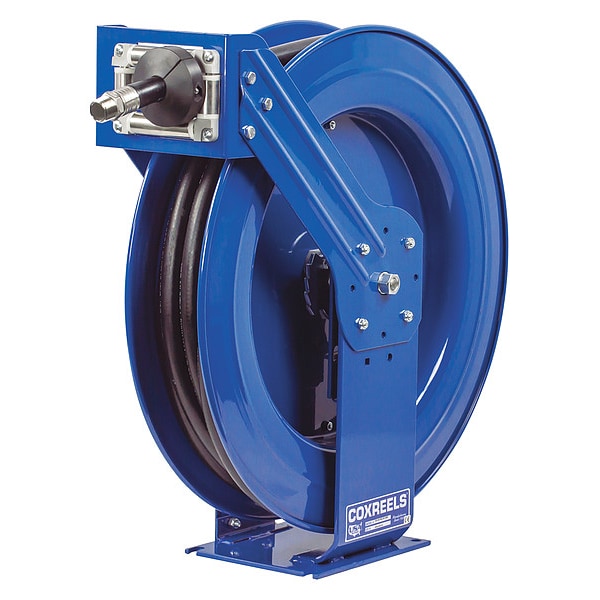

Spring Return DEF Hose Reel, 3/4 in Hose Diameter, 50 ft Length, 300 psi Max. Pressure

  • Mfr # TSH-N-550-DF-BBX

  • Zoro # G1174461

product price:
$
1,261.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
Yes
Includes
Hose
Hose Inside Dia.
3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TSH-N-550-DF-BBX
Zoro #
G1174461
UPC #
-
Country of Origin
United States

Dimensions

Hose Inside Dia.
3/4 in
Overall Height
25 1/2 in
Hose Length
50 ft
Overall Width
9 3/8 in
Overall Length
24 in
Wire Rope Length
24 in
Hose Outside Dia.
1 1/8 in
Reel Diameter
24 in
Mount Base Width
9 in
Mounting Hole Center to Center Width
8 in
Length
24 in

Details

Item
Spring Return DEF Hose Reel
Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
Yes
Includes
Hose
Hose End Configuration
3/4 in (M)NPT
Hose Material
EPDM
Mounting
Bench and Vehicles, Ceiling, Floor, Wall
Media - Hose Reels
Diesel, Kerosene, Fuel Oil and Heating Oil
Application
DEF
Swivel Material
Stainless Steel
Reel Inlet
3/4 in (F)NPT
Hose Outlet
3/4 in (M)NPT
Max. Temp.
150 Degrees F
Latch
Locking
Bearings
Permanently Lubricated
Housing Material
Steel
Duty Rating
Heavy Duty
Finish - Hose Reels
Powder Coated
Seal Type
Viton(R)
Includes Hose
Yes
Corrosion-Resistant
No
Includes Hose Stop
Yes
Hose Reel Secondary Application
Diesel Exhaust Fluid (DEF)
Pedestal Type
Dual Pedestal
Reel Material
Steel
Retraction Speed
25 fps
Base Motion Type
Swivel
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
257 Degrees F
Features
Coxreels(R) Def Series are Equipped with a Stainless Steel External Full Flow Swivel and Chemical Resistant Viton(R) Seals to Provide a Safe, Making these Reels the Perfect Def Handling Solutions for Either Stationary or Rugged Mobile Applications, Reliable Diesel Exhaust Fluid (Def) Dispensing Solution, Supreme Duty Dual Pedestal (T Series) Configuration is Outfitted with Coxreels' Original Super Hub(TM) Triple Axle Support System to Increase Stability and Reduce Vibration During Operation, The Swivel is Easy to Access for Simple Seal Maintenance and Fast Def Dispenser Hose Installation
Hose Reel Type
Hose Reel Cart
Number of Guide Arms
Single Arm
Reel Finish
Powder Coated
Weight
83 lb
Latch Type
Locking
Maximum Operating Pressure
300 psi
Swivel Inlet Type
NPT
Bearing Construction
Permanently Lubricated
Hose Capacity
50 ft. (3/4 in I.D.)

Description

Spring Return DEF Hose Reel, Diesel, 300 psi, Hose Capacity 50 ft. (3/4 in I.D.), Drive Type Spring Return, Enclosed Yes, Includes Hose Yes, Hose Inside Dia. 3/4 in, Hose Length 50 ft, Reel Material Steel, Mounting Location Ceiling, Floor, Vehicle, Wall, Overall Height 25 1/2 in, Overall Length 24 in, Overall Width 9 3/8 in, Corrosion-Resistant No
