  9. Steam Trap, 800F, Stainless Steel, 600 psi, End to End Length: 2 in
Shop All Steam Traps
Crescent Nicholson

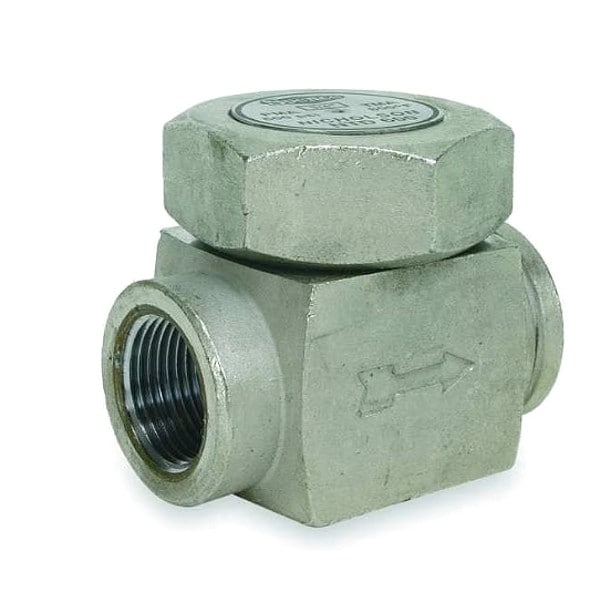

Steam Trap, 800F, Stainless Steel, 600 psi, End to End Length: 2 in

product price: $246.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • (F)NPT Connections 3/8 in
  • Max. Operating PSI 600 psi
  • Disc Material Stainless Steel
  • End to End Length 2 in
  • Condensate Capacity Lbs/Hr 1,250 lb/hr
See all product information

Product Information

Dimensions

End to End Length 2 in
Overall Length 2 in
Port Connection Size 3/8 in

Details

Item Steam Trap
(F)NPT Connections 3/8 in
Max. Operating PSI 600 psi
Disc Material Stainless Steel
Condensate Capacity Lbs/Hr 1,250 lb/hr
Max. Temp. 800 Degrees F
Body Material Stainless Steel
Pipe Configuration Straight
NPT Inlet 3/8 in
NPT Outlet 3/8 in
Application Drip Legs, Steam Heating, Steam Tracing
Type Thermodynamic
Downstream PSI Range 600 psi
Condensate Capacity 1,250 lb/hr
Operating Pressure - Maximum 600 psi
Distance Between Inlet and Outlet Port 2 in
Manufacturer Series NTD600
Number of Ports 2
Includes Strainer Strainer Not Included
Operating Pressure - Minimum 2 psi
Steam Trap Type Thermodynamic
Includes Air Vent Air Vent Not Included
Port Connection Type NPT
Port Connection Gender Female
Actuator Material Stainless Steel
Operating Temperature - Maximum 800 Degrees F
Installation Orientation Horizontal
Configuration In-line
Cap Material Stainless Steel

Description

Steam Trap, Actuator Material Stainless Steel, Application Drip Legs, Steam Heating, Steam Tracing, Body Material Stainless Steel, Cap Material Stainless Steel, Condensate Capacity 1,250 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 2 in, Includes Air Vent Air Vent Not Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Manufacturer Series NTD600, Number of Ports 2, Operating Pressure - Maximum 600 psi, Operating Pressure - Minimum 2 psi
