Shop CROPICO

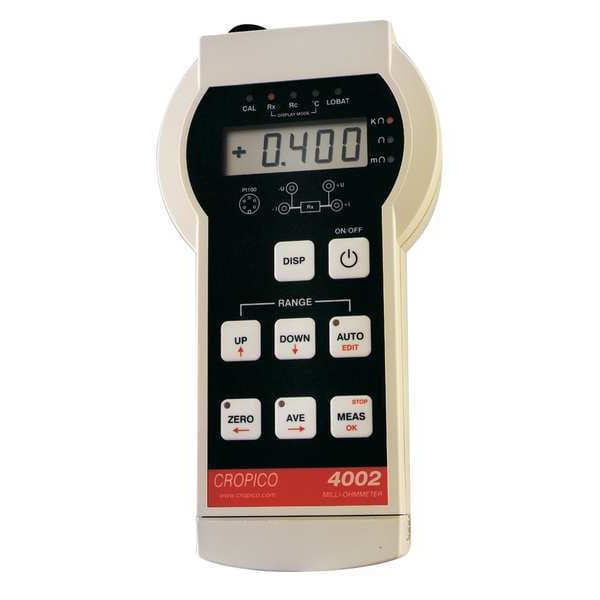

Micro-ohmmeter, 4 mOhm to 400 Ohm

  • Mfr # DO4002

  • Zoro # G8140973

product price:
$
1,961.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Resistance Range
4 milliohm to 400 Ohm
Resistance Range - Milli and Microhm Meters
4 miliohm to 400 ohm
Data Storage
No
Calibration Certificate
Not Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DO4002
Zoro #
G8140973
UPC #
-
Country of Origin
United Kingdom

Dimensions

Battery Size
1.5V
Tool Width
8.5 in
Tool Length
2.2 in
Display Size
0.6 in
Manufacturer Warranty Length
1 yr
Tool Height
5.1 in

Details

Item
Micro Ohmmeter
Power Source
Battery
Resistance Range
4 milliohm to 400 Ohm
Resistance Range - Milli and Microhm Meters
4 miliohm to 400 ohm
Data Storage
No
Calibration Certificate
Not Included
Display
LCD
Resistance Range (Milli and Microhm Meters)
4 miliohm to 400 ohm
Output Current
1mA to 1A
Resolution
1 Micor Ohm to 100 Milli Ohm
Accuracy
+/-0.05%
Features
3 Auto Power Off to Maximize Battery Life, Auto/Manual Range Selection, Automatic Temperature Compensation, Open Circuit Lead Warning on Display, True 4 Terminal Measurement Eliminates Lead Resistance Errors
Auto Power Off
Yes
Auto Ranging
Yes
Minimum Ground Resistance Measurement
4 milliohm
Maximum Operating Temperature
1,472 Degrees F
Tester Type
Micro Ohmmeter
CAT Safety Rating
Not Rated
Number of Batteries Required
5
Includes Batteries
Yes
Display Screen Type
LCD
Display Type
Digital
Resistance Accuracy
+/-0.05%
Maximum Ground Resistance Measurement
400 kiloohm
Minimum Insulation Resistance
4 microohm
Low Resistance Range
4 microhm
Maximum Insulation Resistance
400 ohm
Maximum DC Voltage Measured
250 V
Testing Functions
Low Resistance
Minimum Operating Temperature
32 Degrees F
Insulation Resistance Resolution
1 microohm
Maximum Operating Temperature
40 Degrees C
Instrument Style
Handheld
Number of Digits
4
Test Current
1 A, 1 mA, 10 mA, 100 mA
Calibration Certificate Included
NIST Not Traceable
Alert Type
Light, Audible
Power Source - TS Only
Battery
Power Source - old
Battery

Description

Micro Ohmmeter, Alert Type Light, Audible, Calibration Certificate Included, CAT Safety Rating Not Rated, Display Type Digital, Insulation Resistance Resolution 1 microohm, Maximum Insulation Resistance 400 ohm, Minimum Insulation Resistance 4 microohm, Number of Digits 4, Power Source - old Battery, Test Current 1 A, 1 mA, 10 mA, 100 mA, Auto Power Off Yes, Auto Ranging Yes, Battery Size 1.5V, Display Screen Type LCD, Display Size 0.6 in
