Shop FIELDPIECE

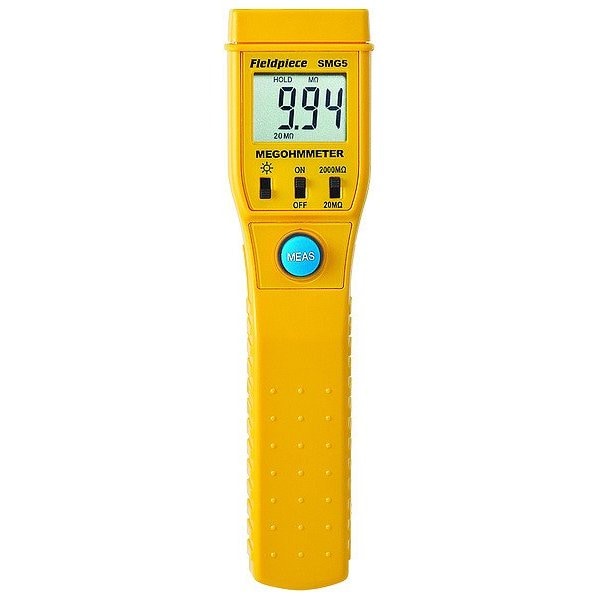

Digital Megohn Meter

  • Mfr # SMG5

  • Zoro # G216474906

product price:
$
156.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
(2) Probe Tips, Alligator Probe Tip, Carrying Case, Ground Lead with Detachable Tip
Auto Power Off
Yes
Features
Compact Standalone Meter Designed for Checking HVAC Compressor Insulation
Minimum Insulation Resistance
20 megaohm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SMG5
Zoro #
G216474906
UPC #
872641000448
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturer Warranty Length
1 yr
Battery Size
AAA
Tool Height
170 mm
Tool Length
40 mm
Tool Width
44 mm

Details

Item
Megohmmeter
Power Source
Battery
Includes
(2) Probe Tips, Alligator Probe Tip, Carrying Case, Ground Lead with Detachable Tip
Auto Power Off
Yes
Features
Compact Standalone Meter Designed for Checking HVAC Compressor Insulation
Minimum Insulation Resistance
20 megaohm
Battery Chemistry
Alkaline
Minimum Operating Temperature
0 Degrees C
Alert Type
Digital Display
Input Impedance
20 megaohm
Insulation Resistance Resolution
1 megaohm on 2000 megaohm, 10 kiloohm on 20 megaohm
Low Resistance Range
Below 500 kilohm
Testing Functions
DC Voltage, Insulation Resistance, Resistance
Backlit Digital Display
Yes
Display Type
Digital
Test Current
Less Than1 mA
Display Screen Type
LCD with Backlight
Operating Voltage
1,000V DC
Number of Batteries Required
4
Test Voltage
1,000V DC
Resistance Accuracy
Greater Than500 megaohm +/-(5%rdg + 2dgts), 20 megaohm Range: +/-(2%rdg + 2dgts), 2000 megaohm Range: Less Than500 megaohm +/-(4%rdg + 2dgts)
Maximum Insulation Resistance
2,000 megaohm
Maximum DC Voltage Measured
1,000 V
Maximum Operating Temperature
40 Degrees C
Includes Batteries
Yes
Waterproof
No
Live Circuit Voltage Measurement - Maximum
1,000 V DC
Greater Than 30V Warning
No
Live Circuit Voltage Measurement - Minimum
1.5 V
Capacitance Auto Discharge
No
PI/DAR Testing
No
Dustproof
No
Insulation Limit Alarm
No
Leakage Current Range
No
Remote Test Probe Included
No
Timed Ramp Voltage Test
No
Calibration Certificate Included
No Certification Included
Pass/Fail Selection Limits
No
IP Rating
Not Rated
Instrument Style
Handheld
Data Output Type
No Output
USB Data Download Included
No
Power Source - TS Only
Battery
Power Source - old
Battery

Description

Megohmmeter, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating Not Applicable, Calibration Certificate None, Capacitance Auto Discharge No, Display Type Digital, Dustproof No, Greater Than 30V Warning No, Includes (2) Probe Tips, Alligator Probe Tip, Carrying Case, Ground Lead with Detachable Tip, Insulation Limit Alarm No, Maximum Insulation Resistance 2,000 megaohm, Minimum Insulation Resistance 20 megaohm, PI/DAR Testing No
