  10. /
  11. Shackle, 1-3/4 in., 50,000 lb.
Shop All Shackles
Crosby

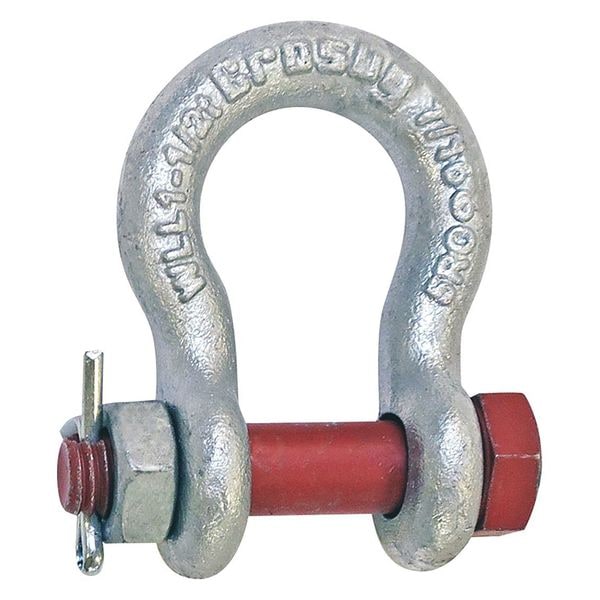

Shackle, 1-3/4 in., 50,000 lb.

product price: $612.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Width Between Eyes 2 7/8 in
  • Body Size 1 3/4 in
  • Pin Dia. 2 3/64 in
  • Pin Style Bolt, Cotter, Nut
  • Standards ASME B30.26
See all product information

Product Information

  • Brand Crosby
  • MFR # 1019659
  • Zoro # G2368655
  • Country of Origin United States
  • Category Shackles

Dimensions

Width Between Eyes 2 7/8 in
Body Size 1 3/4 in
Pin Dia. 2 3/64 in
Pin Diameter 2 in
Inside Length 7 in
Inside Width 5 in

Details

Item Anchor Shackle
Pin Style Bolt, Cotter, Nut
Standards ASME B30.26
Finish Hot Galvanized
Working Load Limit 50,000 lb
Pin Material Alloy Steel
Body Material Carbon Steel
Lifting Capability For Lifting
Pin Color Red
Pin Type Removable Bolt and Nut
Pin Finish Galvanized
Minimum Operating Temperature -40 Degrees F
Body Thickness 1 3/4 in
Body Color Silver
Body Finish Galvanized
Maximum Operating Temperature 400 Degrees F
Shackle Type Anchor Shackle

Description

Anchor Shackle, Shackle Type Anchor Shackle, Lifting Capability For Lifting, Working Load Limit 50,000 lb, Width Between Eyes 2 7/8 in, Body Material Carbon Steel, Inside Length 7 in, Inside Width 5 in, Body Thickness 1 3/4 in, Body Color Silver, Body Finish Galvanized, Pin Type Removable Bolt and Nut, Pin Diameter 2 in, Pin Material Alloy Steel, Pin Color Red, Pin Finish Galvanized, Minimum Operating Temperature -40 Degrees F, Maximum Operating Temperature 400 Degrees F, Standards ASME B30.26
