  11. Swivel Hook, Carbon Steel, 4000 lb., Red
Shop All Chain & Cable Hooks
Crosby

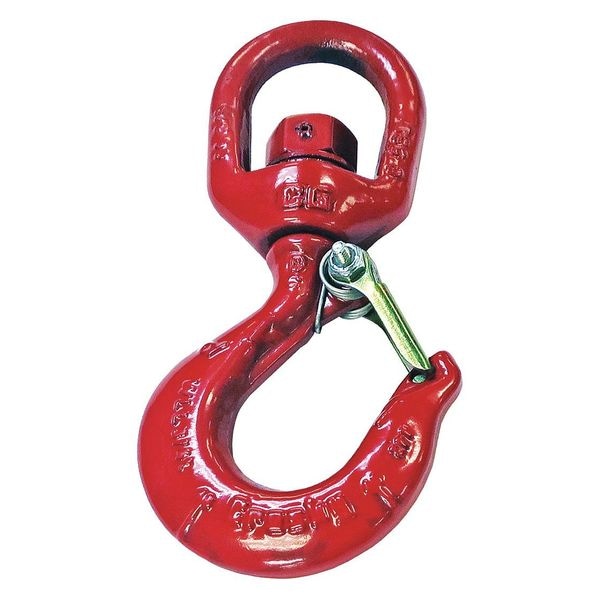

Swivel Hook, Carbon Steel, 4000 lb., Red

product price: $130.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material Carbon Steel
  • Grade 100
  • Hook Attachment Type Swivel Eye
  • Dimension B 6-1/2"
  • Working Load Limit 4,000 lb
See all product information

Product Information

Dimensions

Dimension B 6-1/2"
Hook Reach Length 6 1/2 in
Diameter 5/8 in
Eye Inside Height 1 1/2 in
Eye Inside Width 1 3/4 in
Dimension a 1-29/32"
Dimension d 1-3/4"
Overall Length 8 1/4 in
Overall Width 4 in
Compatible Chain Trade Size 9/32 in
Eye Inside Diameter 1 3/4 in
Compatible Rope Diameter 5/8 in, 3/4 in
Hook Opening Width 1 5/8 in
Usable Length 6 1/2 in

Details

Item Slip Hook
Material Carbon Steel
Grade 100
Hook Attachment Type Swivel Eye
Working Load Limit 4,000 lb
Hook Opening 1 29/32 in
Color Red
Includes Latch
Finish Painted
Standards ASME B30.10
Attachment Type Swivel
Markings Deformation Markings, Maximum Angle Markings
Compatible Chain Grade 100
Maximum Operating Temperature 392 Degrees F
Hardware Included Latch
Minimum Operating Temperature -40 Degrees F
Material Thickness 5/8 in
Hook Type Slip Hook
Lifting Capability For Lifting

Description

Slip Hook, Hook Type Slip Hook, Working Load Limit 4,000 lb, Lifting Capability For Lifting, Grade 100, Material Carbon Steel, Material Thickness 5/8 in, Hook Opening Width 1 5/8 in, Overall Length 8 1/4 in, Usable Length 6 1/2 in, Overall Width 4 in, Eye Inside Diameter 1 3/4 in, Eye Inside Height 1 1/2 in, Shank Diameter Not Applicable, Shank Length Not Applicable, Clevis Inside Width Not Applicable, Attachment Type Swivel, Clevis Pin Diameter Not Applicable
