Shop All Wire Rope Clips
Crosby

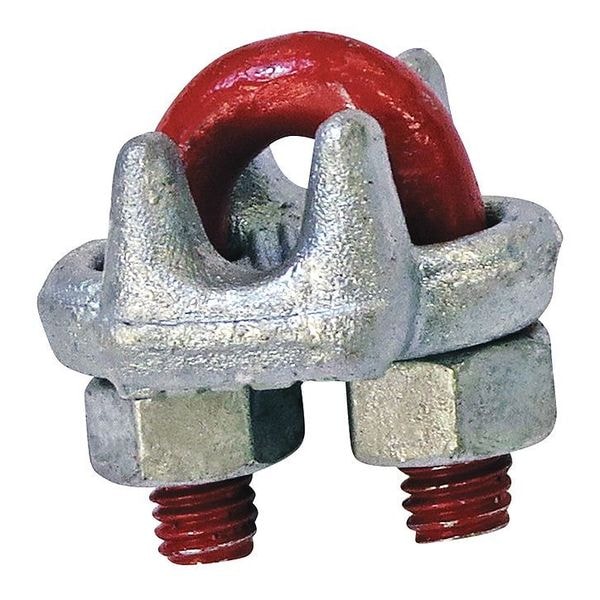

Wire Rope Clip, U-Bolt, 1/4in

original price: $9.95
15% off
new price: $8.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Clip Type U-Bolt Clip
  • For Wire Rope Dia. 1/4 in
  • Min. Number of Clips 2
  • Material Steel
  • Rope Turn Back 4 3/4 in
See all product information

Product Information

Dimensions

For Wire Rope Dia. 1/4 in
Wire Rope Dia. 1/4"
Rope Turnback Length 4 3/4 in
Compatible Rope Diameter - Maximum 1/4 in

Details

Item Wire Rope U-Bolt Clip
Clip Type U-Bolt Clip
Min. Number of Clips 2
Material Steel
Rope Turn Back 4 3/4 in
Min. Torque 15 ft-lb
Finish Galvanized
Includes (2) Nuts, Saddle, U-Bolt
Standards ASME B30.26
Load Efficiency Rating 80 %
Compatible Strand Classification 6 x 19, 6 x 37
Color Red, Silver
Compatible Core Type Wire Strand Core
Fabrication Forged
Minimum Number of Clips Required 2
Minimum Installation Torque 15 ft-lb
Lifting Capability For Lifting

Description

Wire Rope U-Bolt Clip, Compatible Rope Diameter - Minimum Not Applicable, Compatible Rope Diameter - Maximum 1/4 in, Rope Turnback Length 4 3/4 in, Material Steel, Minimum Installation Torque 15 ft-lb, Compatible Core Type Wire Strand Core, Clip Type U-Bolt Clip, Fabrication Forged, Compatible Strand Classification 6 x 19, 6 x 37, Load Efficiency Rating 80 Percent, Color Red, Silver, Lifting Capability For Lifting, Minimum Number of Clips Required 2, Finish Galvanized, Standards ASME B30.26
