  13. Solid State Relay, 1 Phase, Screw Clamp, DIN Rail & Panel, MOSFET

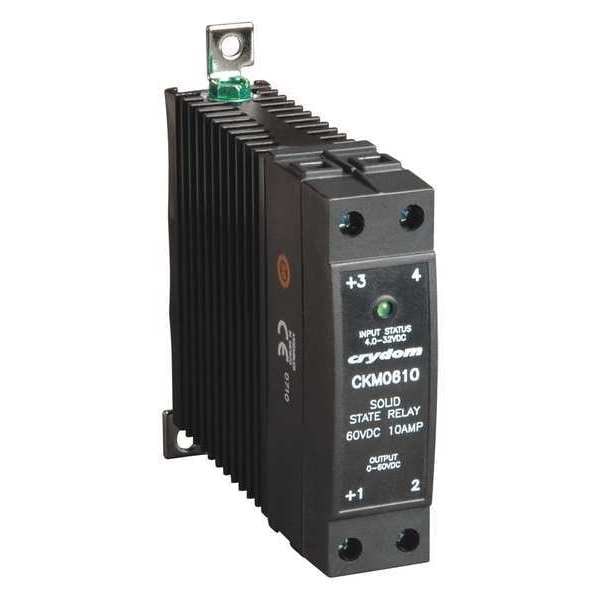

Crydom Solid State Relay, 1 Phase, Screw Clamp, DIN Rail & Panel, MOSFET CKM0610 - main

Solid State Relay, 1 Phase, Screw Clamp, DIN Rail & Panel, MOSFET

  • Mfr # CKM0610

  • Zoro # G4476491

product price: $143.99
/ea
Free Shipping & Returns

Key Features

Electrical Phase
1
Electrical Connection
Screw Clamp
Mounting Style
DIN Rail & Panel
Switch Component Type
MOSFET
Heat Sink
Integral
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CKM0610
Zoro #
G4476491
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Height - Relay
3.9 in
Body Width
0.88 in
Overall Depth
3.96 in
Body Depth
0.89 in
Body Height
3.16 in

Details

Item
Solid State Relay
Electrical Phase
1
Electrical Connection
Screw Clamp
Mounting Style
DIN Rail & Panel
Switch Component Type
MOSFET
Heat Sink
Integral
Contact Form - Relay
SPST-NO
Input Power Consumption (Burden)
0.1 to 0.4W
Input Voltage
4 to 32V DC
Case Color
Black
Standards
CE Certified, Designed in accordance with the requirements of IEC 62314, RoHS Compliant
Finger Safe
Yes
Drop Out Voltage
0.2V DC
Current Type
DC
Series
CKM Series
Status Indicator
Green LED Indicator
Insulation Resistance
1,000 megaohm
Weight
10 oz
Output Voltage Range
0 to 60V DC
Maximum Operating Temperature
176 Degrees F
Maximum Output Current without Heat Sink
10 A
Frequency
50/60 Hz
Maximum Capacitance
8 pF
Dielectric Strength
2,500V AC
Switch Configuration
Form A
Maximum Output Current with Heat Sink
10 A
Minimum Operating Temperature
-40 Degrees F
Input Current
11 mA at 32V DC; 9 mA at 5V DC
Response Time
1 msec

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 11 mA at 32V DC; 9 mA at 5V DC, Input Voltage 4 to 32V DC, Maximum Output Current with Heat Sink 10 A, Maximum Output Current without Heat Sink 10 A, Output Switching Mode Not Applicable, Output Voltage Range 0 to 60V DC, Standards CE Certified, Designed in accordance with the requirements of IEC 62314, RoHS Compliant, Switch Component Type MOSFET, Current Type DC, Finger Safe Yes
