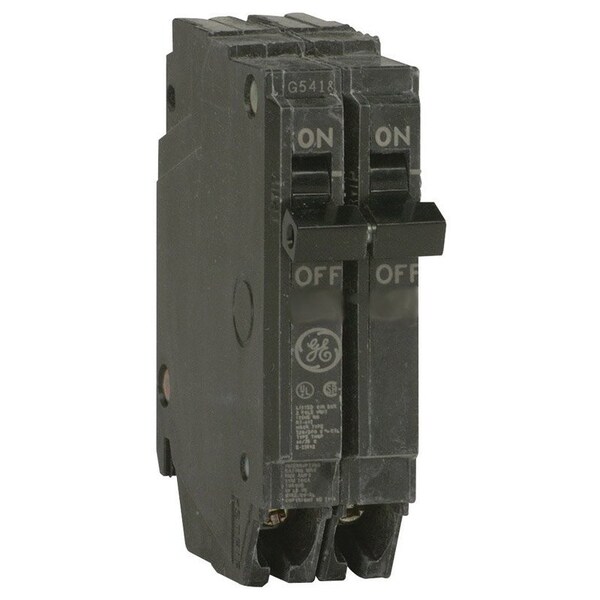

Circuit Breaker, THQP Series, 20A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # THQP220
Zoro # G509204463
CAD Available
product price: $22.59
/eaKey Features
CAD Drawing
Series
THQP
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Toggle
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
THQP220
Zoro #
G509204463
UPC #
783164085723
Country of Origin
United States
Dimensions
Frame Size
100A/THQ
Width
1 in
Depth
2-3/8 in
Height
3-9/32 in
Details
Item
Circuit Breaker
Series
THQP
Amps
20A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120/240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
CAD Available
Yes
Description
Plug-in Circuit Breaker, 20 Amp, Double Pole, For use with GE Panelboards, Terminal Connection Lug, 10kA
- • 1/2" Format
- • Two-Pole Common Trip Bar
- • UL Listed
- •
