Shop CYBERPOWER

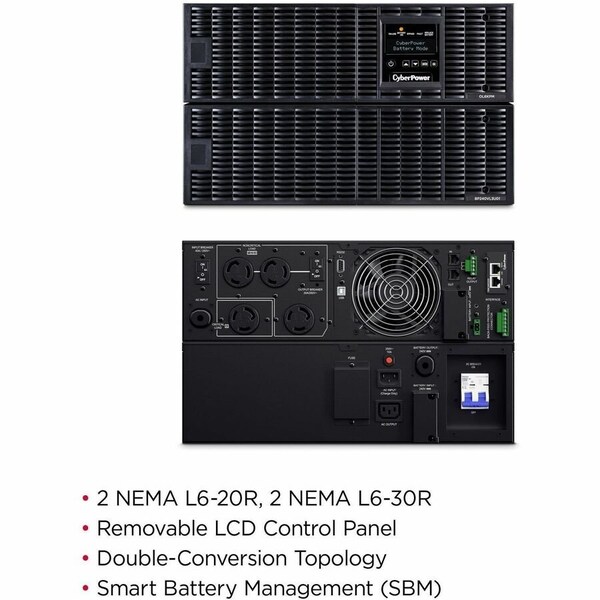

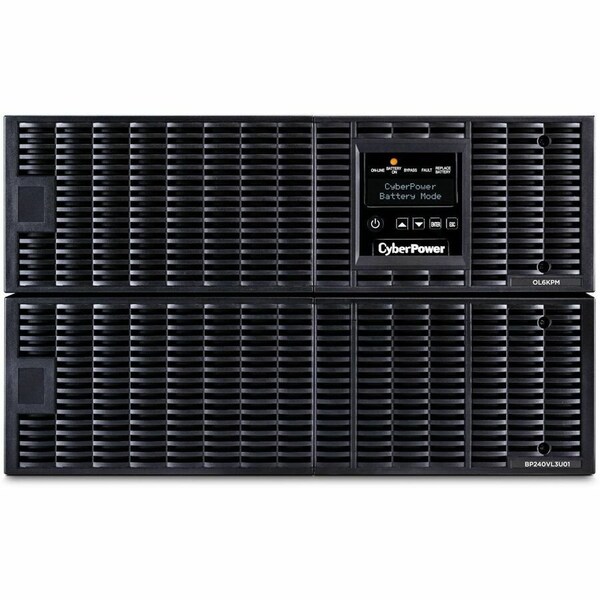

ONLINE RACK/TOWER NEMA L6-30P INPUT NEMA L6-20R AND NEMA L6-30R OUTPUT RMCARD205

  • Mfr # OL6KRT

  • Zoro # G616470195

product price:
$
6,483.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

Width
17 in
Depth
26 in
Height
10-1/2 in
Dataline Protection
RJ-45, RJ-11
Input Frequency
40 Hz, 70 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
OL6KRT
Zoro #
G616470195
UPC #
649532620210
Country of Origin
China

Dimensions

Width
17 in
Depth
26 in
Height
10-1/2 in
Battery Size
12V
Rack Height
6U
Cable Length
10 ft

Details

Item
Double Conversion Online UPS
Dataline Protection
RJ-45, RJ-11
Input Frequency
40 Hz, 70 Hz
Waveform Type
Sine Wave
USB (HID Compliant) Port
Yes
Output Frequency
50.25 Hz, 49.75 Hz
Input Power Factor
0.99
Form Factor
Rack/Tower
Network Management
Dry Contact
Transfer Time
0 ns
Backup/Run Time (Half Load)
15 Minute
Input Voltage
230 V AC, 120 V AC
Serial Port
Yes
Storage Temperature
-4°F (-20°C) - 113°F (45°C)
Environmentally Friendly
Yes
Status Indicators
LED Indicators: Power On (White)
EMI/RFI Noise Filter
Yes
Maximum Operating Elevation
10000 ft
Battery Capacity
7000 mAh
Display
LCD
Thermal Dissipation
560.35 W
Overload Protection
Yes
Surge Energy Rating
2430 J
Maximum Operating Temperature
104°F (40°C)
Package Contents
Smart App Online OL6KRT 6000VA Tower/Rack Mountable UPS, Rack Mounting Hardware, USB Cable, Serial Cable, Phone Cable
Receptacle Detail
2 x NEMA L6-30R, 2 x NEMA L6-20R
Current
30 A
Battery Characteristics
Sealed
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
EPO Port
Yes
USB
Yes
Sound Emission (A-Weighted)
65 dB(A)
Plug/Connector Type
NEMA L6-30P
Network (RJ-45)
Yes
Alarm
Battery Mode
Output Voltage
220 V AC, 230 V AC, 292 V AC, 240 V AC, 198 V AC, 200 V AC, 208 V AC
Protection Type
Backfeed, Short Circuit
Replaceable Battery
Yes
Output Power Factor
0.9
Color
Black
Backup/Run Time (Full Load)
5.40 Minute
Receptacle Type
NEMA L6-20R, NEMA L6-30R
Battery Chemistry
Lead Acid
Maximum Power Supply Wattage
5400 W
Energy Saving
ECO Mode Efficiency up to 96%
Storage Relative Humidity
0% - 95%
Load Capacity (VA)
6000 VA
Typical Battery Recharge Time
4 Hour
Number of Batteries
20
Maximum Storage Elevation
50000 ft
Input Voltage Range
120 V AC - 139 V AC
