  11. UPS System, Online Double Conversion, Out: 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC
No Product Image Available

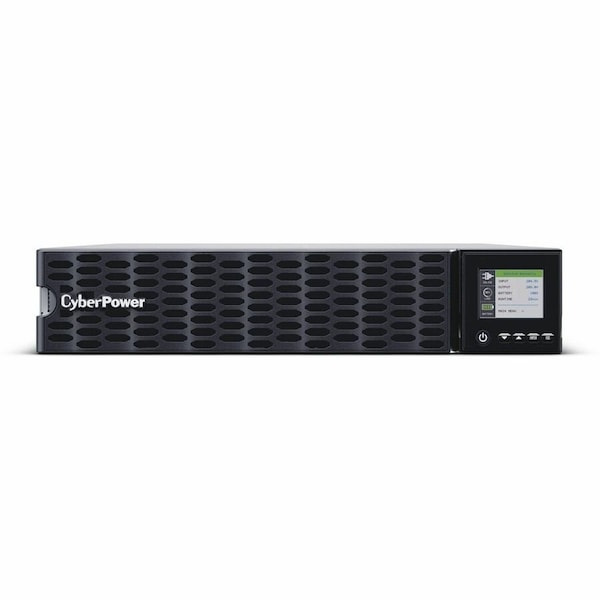

UPS System, Online Double Conversion, Out: 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC

  • Mfr # OL5KRTHD

  • Zoro # G815213050

product price: $6,251.99
/ea
Free Shipping & Returns

Key Features

UPS Type
Online Double Conversion
Mounting
Rack, Tower
Input Voltage
200 V AC, 240 V AC
Output Voltage
200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC
Medical Grade
Not Medical Grade Approved
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OL5KRTHD
Zoro #
G815213050
UPC #
20649532620429
Country of Origin
China

Dimensions

Overall Width
17 in
Power Cord Length
10 ft
Overall Height
3.4 in
Overall Depth
28.3 in

Details

Item
UPS System
UPS Type
Online Double Conversion
Mounting
Rack, Tower
Input Voltage
200 V AC, 240 V AC
Output Voltage
200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC
Medical Grade
Not Medical Grade Approved
Display Type
LCD/LED
Frequency
50/60 Hz
Audible Alarm Conditions
Low Battery, Overload, UPS Fault
Operating Temperature - Minimum
32 Degrees F
Run Time - Full Load
3.1 min
Number of Outlets - UPS
4
Power Rating - Real
5,000 W
Plug Configuration
L6-30P
Receptacle Configuration
L6-20R, L6-30R
Includes Battery
Battery Included
External Battery Compatible
External Battery Pack Compatible
Phase
Single
External Battery Pack Part Number
BP144VL2U01
Automatic Voltage Regulation
No Automatic Voltage Regulation
Input Current - Maximum
50 A
Surge Suppression Rating
2,430 J
Standards
CSA C22.2 No. 107.3, FCC Part 15 Class A, RoHS Compliant, UL1778
Data Line Protection
Includes Data Line Surge Protection
Manufacturer Warranty
3 yr
Run Time - Half Load
7.9 min
Power Rating - Apparent
5,000 VA
Transfer Time - Maximum
0 msec
Green Certification or Other Recognition
ENERGY STAR(R) Certified
Output Ports Included
EPO, SNMP, USB
Operating Temperature - Maximum
104 Degrees F
Battery Recharge Time
4 hr
Housing Material
Metal
Replacement Battery Part Number
RB1260X12
Power Rating
5000 VA
Outlet Type
Hardwired
Wattage
5000 W
Backup Time (Half/Full Load)
7.90 Minute/3.10 Minute

Description

UPS System, Online Double Conversion, Medical Grade Not Medical Grade Approved, Display Type LCD/LED, Single Phase, Standards CSA C22.2 No. 107.3, FCC Part 15 Class A, RoHS Compliant, UL1778, Green Certification or Other Recognition ENERGY STAR(R) Certified
