Shop DAKE

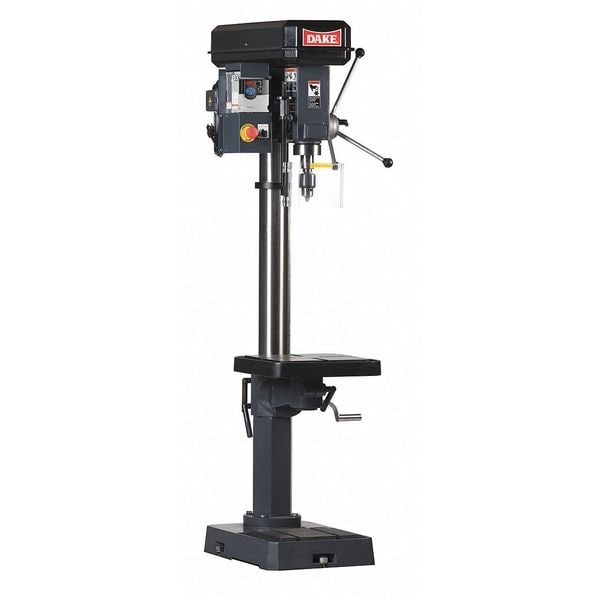

Floor Drill Press, Belt Drive, 2 hp, 115V AC V, 18 in Swing, Variable Speed

  • Mfr # 977400-1V

  • Zoro # G2204329

product price:  $5,120.99
/ea
Additional $260.00 delivery surcharge applies per item.
See details

Key Features

Drill Press Product Grouping
General Purpose Drill Presses
Drive Type
Belt
Swing
18 in
Voltage
120V AC
Motor HP
2 hp
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
977400-1V
Zoro #
G2204329
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size
5/8 in
Overall Height
71 in
Overall Depth
23 5/8 in
Quill Dia.
3 1/4 in
Column Dia.
4 in
Table Slot Size
5/8 in
Overall Width
15 in
Base Size
15 in x 23-5/8 in
Maximum Spindle-to-Table Height
26 1/4 in
Table Length
15 3/4 in
Column Diameter
4 in
Base Height
23 5/8 in
Maximum Overall Height
71 in
Quill Diameter
3 1/4 in
Table Width
15 3/4 in
Maximum Spindle-to-Base Height
50 in
Base Width
15 in

Details

Drill Press Product Grouping
General Purpose Drill Presses
Item
Floor Drill Press
Drive Type
Belt
Swing
18 in
Voltage
120V AC
Motor HP
2 hp
Number of Speeds
Variable
Capacity Steel
1 1/4 in
Spindle Speed
46 to 3473 rpm
Table Work Surface
15-3/4 in x 15-3/4 in
Number of T-Slots
4
Includes
5/8 in Keyed Chuck, Drift for Bit Removal, HDPE Chip and Chuck Guard
Spindle Travel
5 1/4 in
Power Down Feed Included
No
Spindle Taper
4MT
Amps AC
20 A
Drilling Capacity Wood
Not Specified
Corded/Banded
Corded
Hz
60
Spindle to Table
26 3/8 in
Tilting Angle
180 Degrees
Max. Spindle To Base
50 in
Corded/Cordless
Corded
Capacity Cast Iron
Not Specified
Phase
Single-Phase
Tool Weight
483 lb
Application
General Purpose Drill Press
Maximum Spindle Speed
3,473 RPM
Tapping Compatible
Yes
Current
20 A
Coolant System
No
Speed Control
Variable
Primary Material Application
Metal, Wood
Table Slot
Yes
Drill Press Application
Drilling, Tapping
Speed Range
46 to 3,473 RPM
Spindle-to-Column Distance
9 in
Guard Included
Yes
Drilling Capacity in Steel
1 1/4 in
Speed Adjustment
Knob
Minimum Spindle Speed
46 RPM
Drill Press Type
Floor Stand
Horsepower
2 hp
Chuck Style
Keyed
Drilling Capacity in Wood
1 1/4 in
Radial Arm
No
Standards
CE Certified
Power Source
Corded
Table Shape
Square
Number of Spindle Speeds
Variable
Chuck Capacity
5/8 in
Number of Pieces
4

Description

Floor Drill Press, Primary Material Application Metal, Wood, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Drilling, Tapping, Speed Control Variable, Speed Adjustment Knob, Swing 18 in, Spindle-to-Column Distance 9 in, Horsepower 2 hp, Voltage 120V AC, Spindle Taper 4MT, Number of Speeds Variable, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included Yes, Coolant System No, Quill Diameter 3 1/4 in, Drilling Capacity in Steel 1 1/4 in
