Shop DAKE

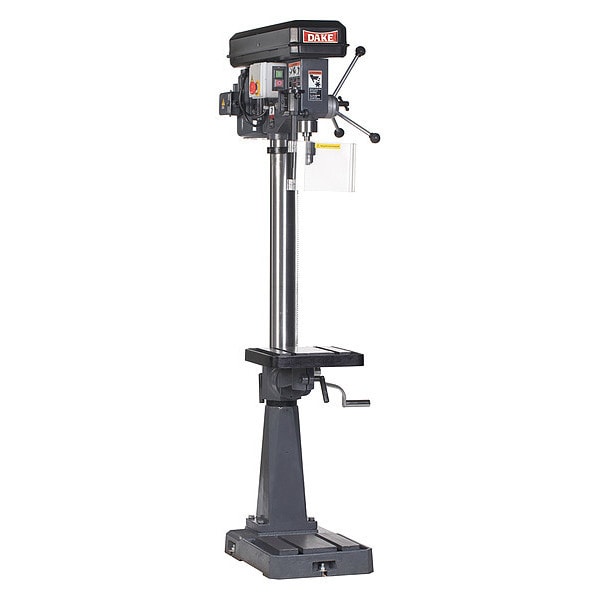

Floor Drill Press, Belt Drive, 1/2 hp, 115V AC V, 14 1/8 in Swing, 9 Speed

  • Mfr # 977200-1

  • Zoro # G2167028

product price:
$
1,938.99
/ea
Additional $270.00 delivery surcharge applies per item.
See details

Key Features

Drill Press Product Grouping
General Purpose Drill Presses
Drive Type
Belt
Swing
14 1/8 in
Voltage
120V AC
Motor HP
1/2 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
977200-1
Zoro #
G2167028
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size
1/2 in
Quill Dia.
2 in
Overall Height
64 in
Overall Width
12 1/2 in
Table Slot Size
5/8 in
Base Size
19-5/8 in x 12-1/2 in
Column Dia.
3 1/8 in
Overall Depth
19 5/8 in
Base Width
12 1/2 in
Cord Length
70"
Maximum Overall Height
64 in
Column Diameter
3 1/8 in
Quill Diameter
2 in
Table Width
11 3/4 in
Table Length
11 3/4 in
Maximum Spindle-to-Table Height
28 1/2 in
Maximum Spindle-to-Base Height
49 1/4 in
Base Height
19 5/8 in

Details

Drill Press Product Grouping
General Purpose Drill Presses
Item
Floor Drill Press
Drive Type
Belt
Swing
14 1/8 in
Voltage
120V AC
Motor HP
1/2 hp
Number of Speeds
9
Capacity Steel
5/8 in
Spindle Speed
240 to 3400 rpm
Includes
1/2 in Keyed Chuck, Drift for Bit Removal, HDPE Chip and Chuck Guard
Number of T-Slots
2
Hz
60
Phase
Single-Phase
Corded/Banded
Corded
Max. Spindle To Base
49 1/4 in
Spindle Taper
2MT
Spindle Travel
3 1/8 in
Drilling Capacity Wood
Not Specified
Power Down Feed Included
No
Corded/Cordless
Corded
Spindle to Table
28 1/2 in
Table Work Surface
11-3/4 in x 11-3/4 in
Amps AC
7 A
Capacity Cast Iron
5/8 in
Application
General Purpose Drill Press
Tool Weight
230 lb
Maximum Spindle Speed
3,400 RPM
Chuck Capacity
1/2 in
Speed Adjustment
Step Pulley
Table Slot
Yes
Spindle-to-Column Distance
7 1/16 in
Primary Material Application
Metal, Wood
Number of Pieces
4
Drilling Capacity in Steel
5/8 in
Drill Press Type
Floor Stand
Radial Arm
No
Speed Control
Fixed
Drilling Capacity in Cast Iron
5/8 in
Power Source
Corded
Minimum Spindle Speed
240 RPM
Table Shape
Square
Coolant System
No
Standards
CE Certified
Number of Spindle Speeds
Variable
Tapping Compatible
Yes
Horsepower
1/2 hp
Speed Range
240 to 3,400 RPM
Drilling Capacity in Wood
5/8 in
Guard Included
Yes
Chuck Style
Keyed
Drill Press Application
Drilling
Current
7 A

Description

Floor Drill Press, Primary Material Application Metal, Wood, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Drilling, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 14 1/8 in, Spindle-to-Column Distance 7 1/16 in, Horsepower 1/2 hp, Voltage 120V AC, Spindle Taper 2MT, Number of Speeds 9, Chuck Size 1/2 in, Chuck Style Keyed, Guard Included Yes, Coolant System No, Quill Diameter 2 in, Drilling Capacity in Steel 5/8 in, Drilling Capacity in Wood 5/8 in
