Dake

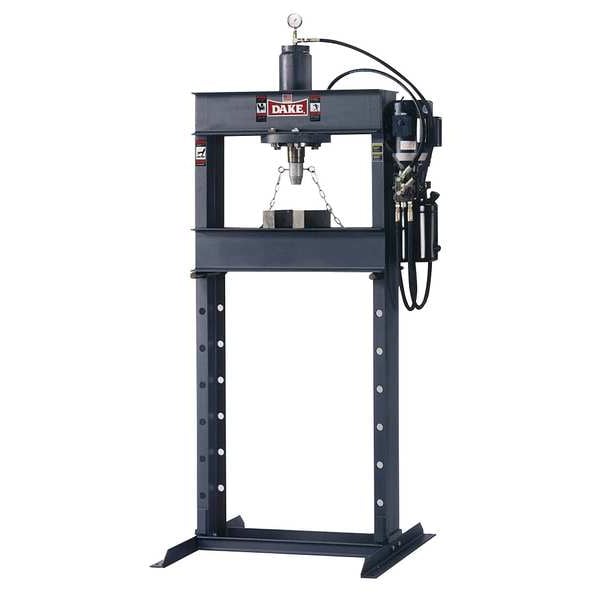

Hydraulic Press, 25 t, Electric Pump, 88 In

product price: $5,972.99
/ea
Item requires special delivery charges. A $270.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Frame Capacity 25 ton
  • Frame Type H-Frame
  • Cylinder Stroke 10"
  • Pump Type Electric
  • Base Length 30 in
See all product information

Product Information

Dimensions

Base Length 30 in
Base Width 38 in
Overall Height 88 in
Total Height 88"
Total Width 38"
Height with Screw Extension 88"
Working Height 44"
Working Width 28"
Overall Length 30 in
Overall Width 38 in
Width Between Table Channels 7 in

Details

Frame Capacity 25 ton
Frame Type H-Frame
Cylinder Stroke 10"
Pump Type Electric
Cylinder Fixed
Reservoir Capacity 2 gal
Phase 1
Pump Haldex
Voltage 3 Phase 110
Item Hydraulic Press
Voltage 110V
Features Heavy Duty;Seamless Steel Cylinder;Welded Frame
Includes Flat Ram Nose, Table Plates, V-Blocks
Ram Travel 14-1/2"
Application Bending, Forming, Pressing, Punching, Staking and Clamping, Straightening
Cylinder Type Double Acting
Max. Ram Press Speed 10 in/min
Distance Between Uprights 28 in
Max. Ram-to-Table Distance 44 in
Material - Machining Steel
Stroke 10 in
Adjustable Bed Yes
Min. Ram-to-Table Distance 8 in
Pressure 25 tons

Description

Hydraulic Press, Pump Type Electric, Frame Type H-Frame, Frame Capacity 25 ton, Cylinder Type Double Acting
