This item is Discontinued.

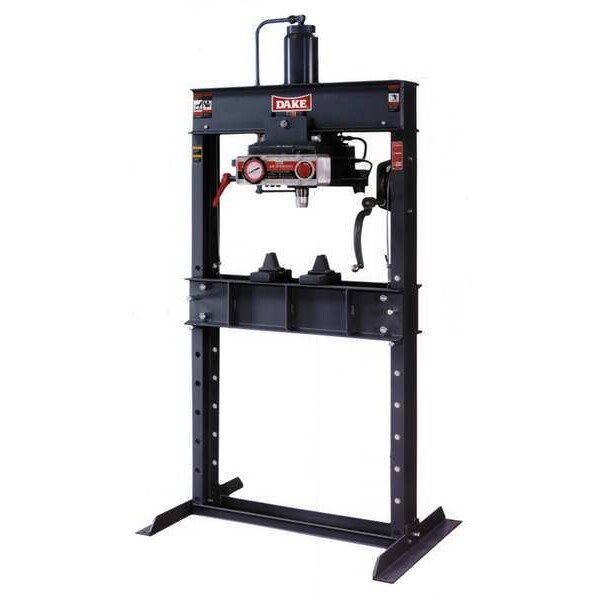

Dake Hydraulic Press, 70 t, Electric Pump 972004

Hydraulic Press, 70 t, Electric Pump (Discontinued)

  • Mfr # 972004
  • Zoro # G2167210
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
972004
Zoro #
G2167210
UPC #
-
Country of Origin
Italy

Dimensions

Base Length
63 in
Base Width
27 in
Overall Height
88 in
Working Height
Adjustable
Total Width
27"
Total Height
88"
Height with Screw Extension
88"
Working Width
27"
Overall Width
27 in
Width Between Table Channels
8 in
Overall Length
63 in
Overall Depth
63 in
Press Bed Width
35 in
Base Depth
63 in
Press Bed Depth
8 in

Details

Frame Capacity
70 ton
Frame Type
H-Frame
Cylinder Stroke
19 in
Pump Type
Electric
Voltage
220 V
Includes
(2) Steel Table Plates, Frame, Lifting Chain, Pressure Gauge, Safety Relief Valve, Workhead
Ram Travel
6-1/4"
Cylinder Type
Double Acting
Application
Pressing Bearings, Pulling
Phase
Three
Features
Welded Plate Frame
Item
Hydraulic Press
Reservoir Capacity
10.5 gal
Cylinder
Fixed
Voltage 3 Phase
220/440V
Pump
Rexroth
Distance Between Uprights
35 in
Min. Ram-to-Table Distance
7-1/4 in
Stroke
19 in
Adjustable Bed
Adjustable
Pressure
70 tons
Max. Ram-to-Table Distance
32 in
Material - Machining
Steel
Max. Ram Press Speed
4 in/min
Max. Ram Advance Speed
42 in/min
Operating Pressure
70 Tonf
Frame Material
Steel
Maximum Ram Advance Speed
42 in/min
Horsepower
2 hp
Ram-to-Table Distance - Minimum
7 1/4 in
Capacity
70 ton
Manufacturer Warranty
1 yr
Ram-to-Table Distance - Maximum
32 in
Operation
Electric
Pump Model Number
Rexroth
Maximum Ram Press Speed
4 in/min

Description

Hydraulic Press, Pump Type Electric, Frame Type H-Frame, Frame Capacity 70 ton, Cylinder Type Double Acting
