  5. Hydraulic Press, 75 t, Manual Pump

This item is Discontinued.

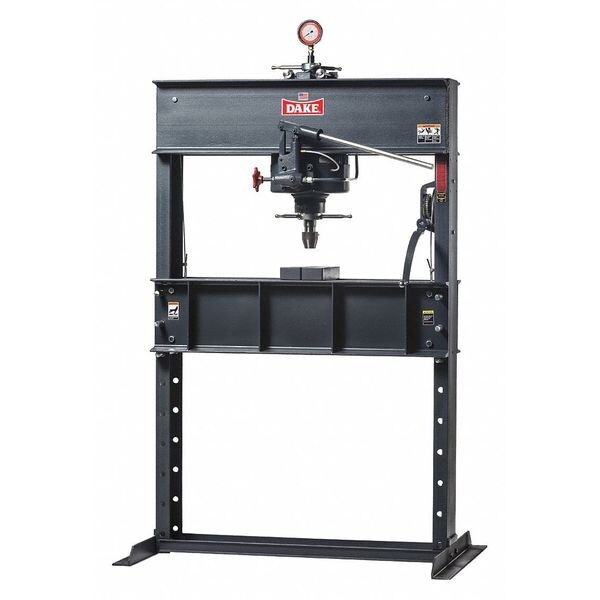

Dake Hydraulic Press, 75 t, Manual Pump 907003

Hydraulic Press, 75 t, Manual Pump (Discontinued)

  • Mfr # 907003
  • Zoro # G2167265
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
907003
Zoro #
G2167265
UPC #
-
Country of Origin
United States

Dimensions

Base Length
55 in
Base Width
36 in
Overall Height
87 in
Total Height
87"
Total Width
36"
Working Width
36"
Working Height
87"
Height with Screw Extension
87"
Overall Width
36 in
Overall Length
55 in
Width Between Table Channels
8 1/4 in
Overall Depth
55 in
Base Depth
55 in
Press Bed Depth
8 1/4 in
Press Bed Width
44 in

Details

Frame Capacity
75 ton
Frame Type
H-Frame
Cylinder Stroke
26 in
Pump Type
Manual
Features
Heavy Duty;Seamless Steel Cylinder;Self-Contained Workhead;Welded Frame
Pump Handle Effort @ Rated Capacity (Lb.)
50 lb.
Cylinder
Movable
Cylinder Type
Single Acting
Application
Pressing Bearings
Ram Travel
13"
Includes
Flat Ram Nose, Frame, Self-Locking Table Hoist, Tonnage Gauge, V-Notch Table Plate
Strokes to Extend Piston 1 In
26
Pump
Mfr. No. 700887
Item
Hydraulic Press
Reservoir Capacity
6 qt
Pressure
75 tons
Distance Between Uprights
44 in
Min. Ram-to-Table Distance
6 in
Max. Ram-to-Table Distance
36 in
Screw Travel
7 in
Adjustable Bed
Adjustable
Material - Machining
Steel
Stroke
26 in
Pump Model Number
700887
Capacity
75 ton
Operation
Manual
Ram-to-Table Distance - Maximum
36 in
Frame Material
Steel
Manufacturer Warranty
1 yr
Ram-to-Table Distance - Minimum
6 in
Screw Stroke
7 in

Description

Hydraulic Press, Pump Type Manual, Frame Type H-Frame, Frame Capacity 75 ton, Cylinder Type Single Acting
