Shop DANFOSS

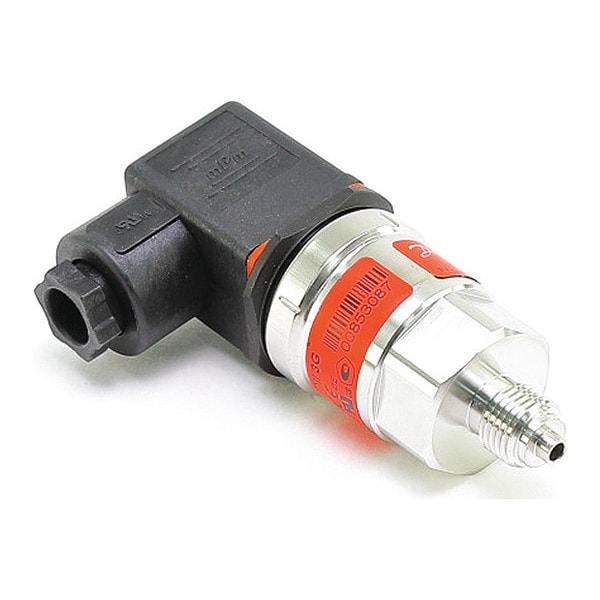

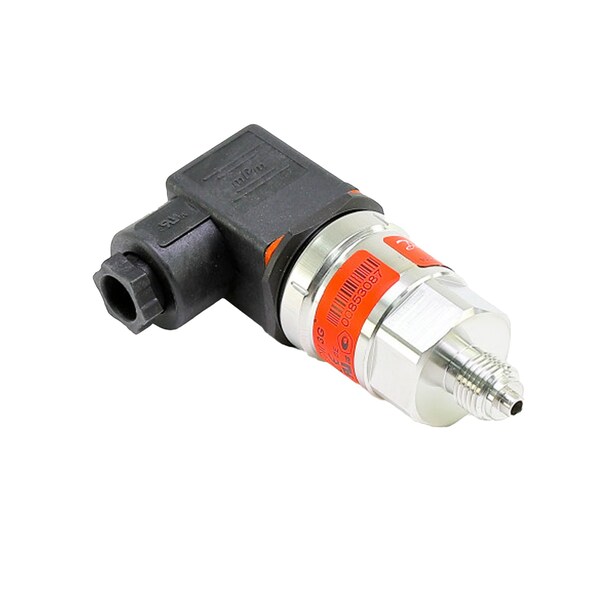

Pressure Transmeter, 1/4in, 4-20mA

  • Mfr # 060G1107

  • Zoro # G2494619

product price:
$
765.99
/ea
Free Shipping & Returns

Key Features

For Use With
Pumps; Compressors; Pneumatics and Water Treatment
Voltage
10 to 30
Features
Operating Temperature
Standards
ATEX Ex ec IIA T4 Gc, EN 175301-803-A, EN 837, UK RoHS Compliance
Process Connection Type
G
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
060G1107
Zoro #
G2494619
UPC #
-
Country of Origin
China
Item
Pressure Transmeter, 1/4", 4-20mA
For Use With
Pumps; Compressors; Pneumatics and Water Treatment
Voltage
10 to 30
Features
Operating Temperature
Standards
ATEX Ex ec IIA T4 Gc, EN 175301-803-A, EN 837, UK RoHS Compliance
Process Connection Type
G
Accuracy
0.5% of Full Scale
Output
4 to 20mA
Intrinsically Safe
No
Series
MBS 3000
Process Connection Gender
Male
Pressure Units
psi/bar
Response Time
4 msec
Power Required
9 to 32V DC
Electrical Connections
DIN 43650 Form A Connector
Type of Pressure
Sealed Gauge
Overpressure
8702 psi
Housing Material
Stainless Steel
IP Rating
IP65
Maximum Pressure
1,450 psi
Minimum Pressure
0 psi
Weight
0.153 kg
Pressure Type Measured
Sealed Gauge
Process Media Temperature - Minimum
-40 Degrees F
Input Voltage
9 to 32V DC
Intrinsic Safety
Not Specified Intrinsically Safe
Pressure Measurement - Maximum
1,450 psi
Output Power
4 to 20mA
Process Media Temperature - Maximum
185 Degrees F
Pressure Measurement - Minimum
0 psi
Electrical Connection
DIN 43650 Form A Connector
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 1,450 psi, Electrical Connections DIN 43650 Form A Connector, Output 4 to 20mA, Accuracy 0.5 Percent of Full Scale, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type G, Power Required 9 to 32V DC, IP Rating IP65, Series MBS 3000, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F, Housing Material Stainless Steel
