Shop CENTURY

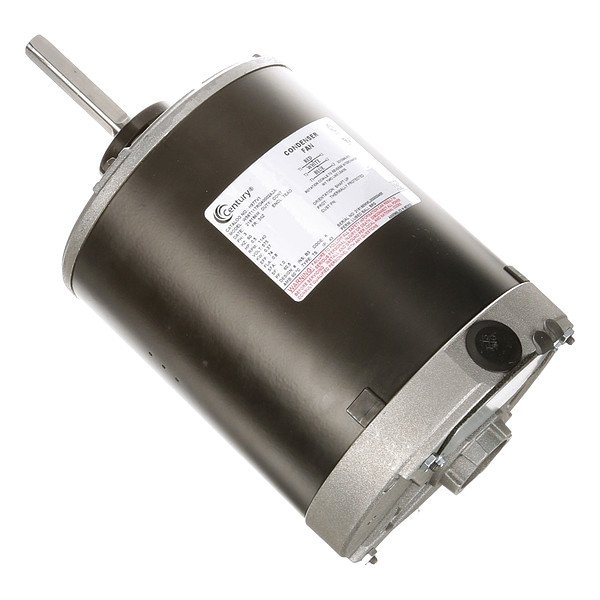

Condenser Fan Motor, 1/2 hp

  • Mfr # H977V1

  • Zoro # G411931112

product price:  $677.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
1/2
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
575V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H977V1
Zoro #
G411931112
UPC #
786674074942
Country of Origin
Mexico

Dimensions

Shaft Length
3 7/16 in
Length Less Shaft
9 9/16 in
Body Dia.
6 9/16 in
Overall Length
13 in
Shaft Dia.
5/8 in
Frame Size
56Y
Body Diameter
6.6 in
Shaft Diameter
5/8 in
Wire Rope Length
13 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
HP
1/2
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
575V AC
Frame
56Y
Motor Mounting Type
Band
Phase
Three
Motor Enclosure Design
Totally Enclosed Air-Over
Standards
CSA Certified, UL Listed
No. of Speeds
1
Max. Ambient Temp.
60 Degrees C
Motor Thermal Protection
Auto
Motor Bearings
Ball
Motor Shaft Design
Keyed
Motor Application
HVAC/R
Features
Vertical/Horizontal Mounting for Proper Placement of the Fan within Airflow
Motor Mounting Position
Vertical Shaft Up
Ins. Class
B
Hz
60 Hz
Full Load Amps
0.80 A
Duty
Continuous
Motor Service Factor
1
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
575V AC
Application
Condenser Fan
Wattage
370 W
Frame Material
Steel
Number of Speeds
1
Full Load Current @ 60 Hz
0.80 A
Sub Application
Condenser Fan
Bearing Type
Ball
Capacitor Required
Capacitor Not Required
Product Type
Condenser Fan Motor
Usable @ 208V
Not Usable at 208V
Ambient Temperature - Maximum
60 Degrees C
Insulation Class
B
Motor Enclosure Type
Totally Enclosed Air-Over
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Shaft Design
Keyed

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 575V AC, 0.80 A Full Load Amps, 56Y Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Belly Band, Motor Frame Material Steel
