Shop DANFOSS

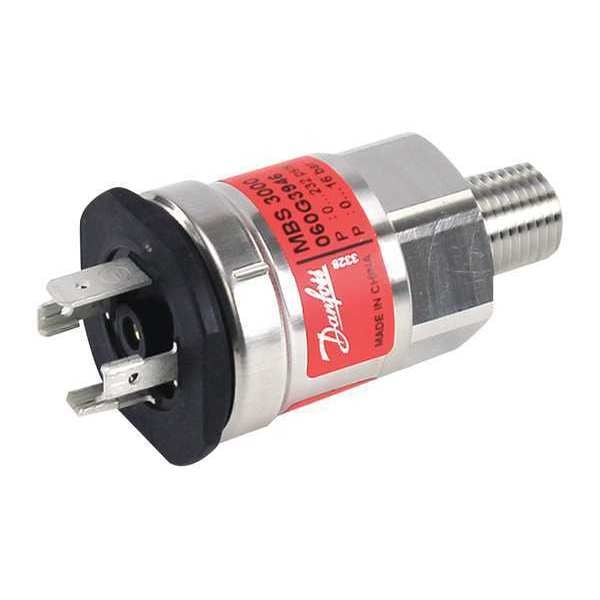

Pressure Transmitter

  • Mfr # 060G3946

  • Zoro # G2494591

product price:
$
629.99
/ea
Free Shipping & Returns

Key Features

For Use With
Pumps; Compressors; Pneumatics and Water Treatment
Voltage
9 to 32V
Features
Operating Temperature
Standards
ANSI/ASME B1.20.1, ATEX Ex ec IIA T4 Gc, EN 175301-803-A, UK RoHS Compliance
Response Time
4 msec
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
060G3946
Zoro #
G2494591
UPC #
-
Country of Origin
China
Item
Pressure Transmitter
For Use With
Pumps; Compressors; Pneumatics and Water Treatment
Voltage
9 to 32V
Features
Operating Temperature
Standards
ANSI/ASME B1.20.1, ATEX Ex ec IIA T4 Gc, EN 175301-803-A, UK RoHS Compliance
Response Time
4 msec
Maximum Pressure
232 psi
Type of Pressure
Sealed Gauge
Series
MBS 3000
Housing Material
Stainless Steel
Electrical Connections
DIN 43650 Form A Connector
Weight
0.125 kg
IP Rating
IP65
Process Connection Gender
Male
Output
4 to 20mA
Minimum Pressure
0 psi
Power Required
9 to 32V DC
Intrinsically Safe
No
Pressure Units
psi/bar
Process Connection Type
NPT
Accuracy
0.5% of Full Scale
Overpressure
1392 psi
Process Media Temperature - Maximum
185 Degrees F
Pressure Measurement - Maximum
232 psi
Pressure Measurement - Minimum
0 psi
Pressure Type Measured
Sealed Gauge
Electrical Connection
DIN 43650 Form A Connector
Output Power
4 to 20mA
Input Voltage
9 to 32V DC
Intrinsic Safety
Not Specified Intrinsically Safe
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 232 psi, Electrical Connections DIN 43650 Form A Connector, Output 4 to 20mA, Accuracy 0.5 Percent of Full Scale, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 9 to 32V DC, IP Rating IP65, Series MBS 3000, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F, Housing Material Stainless Steel
