Dart Controls

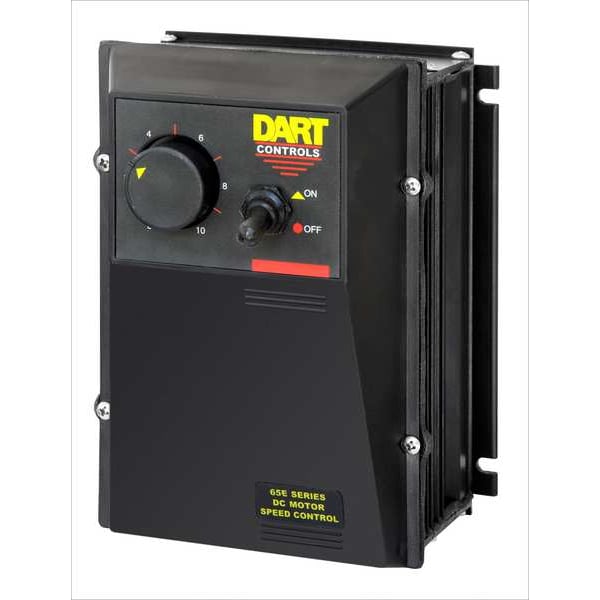

DC SpdCtrl, 12/24/36/48VDC, 20A, NEMA 4X/12
- Zoro #: G0203729
- Mfr #: 65E20E
Hover or click to zoom Tap to zoom
Help us improve our
product images
Key Features
- Item: DC Speed Control
- Enclosure: NEMA 4X/12
- Max. Amps: 20 A
- Voltage Output: 12 to 48V DC
- Speed Range: 30:1
- Rotation: Single Direction
- External Switches: ON/OFF
- DC Input Voltage: 12 to 48V DC
$370.30
Ships from United States
Subtotal: $370.30
Sign In For Free Shipping On $50+ Orders
30-Day Returns
125 U.S.-Based Customer Service Agents
Dart Controls #65E20E Specifications
- Zoro #: G0203729
- Mfr #: 65E20E
- Item: DC Speed Control
- Enclosure: NEMA 4X/12
- Max. Amps: 20 A
- Voltage Output: 12 to 48V DC
- Speed Range: 30:1
- Rotation: Single Direction
- External Switches: ON/OFF
- DC Input Voltage: 12 to 48V DC
- DC Speed Control: PWM
- Current/Torque Limit: Adjustable
- Speed Regulation: +/-1% of Base Speed
- Display Type: LED
- Linear Deceleration: Fixed 0.5 sec
- Width: 5.53 in
- Depth: 4.78 in
- IR Compensation: Adjustable
- For Use With: Commercial, Industrial
- Operating Temp.: -15 Degrees to 60 Degrees C
- HP @ Higher Volts: 1
- Power On Light: Yes
- Height: 7.3 in
- Standards: RoHS
- Follower Circuit: No
- Linear Acceleration: Adjustable 0 to 10 sec
- HP @ Lower Volts: 1/25 to 1/3
- Includes: Product Manual
- Mount Type: Wall
- Overall Depth: 4.78 in
- Lower Voltage Motor Output Power: 1/25 to 1/3 hp
- Minimum Linear Acceleration: 0 sec
- Series: Series 65
- NEMA Rating: NEMA 4
- Maximum Linear Deceleration: 0.5 sec
- Operating Temperature: -10 Degrees to 45 Degrees C
- Higher Voltage Motor Output Power: 1 hp
- Overall Height: 7.3 in
- Enclosure Type: Enclosed
- Overall Width: 5.53 in
- Maximum Current: 20 A
- Maximum Linear Acceleration: 10 sec
- Enclosure Rating: NEMA 4X
- Country of Origin (subject to change): United States
Description
DC Speed Control, DC Speed Control PWM, NEMA 4X, Lower Voltage Motor Output Power 1/25 to 1/3 hp, DC Input Voltage 12 to 48V DC, Voltage Output 12 to 48V DC, Speed Range 30:1, Rotation Single Direction, External Switches ON/OFF
