Dart Controls

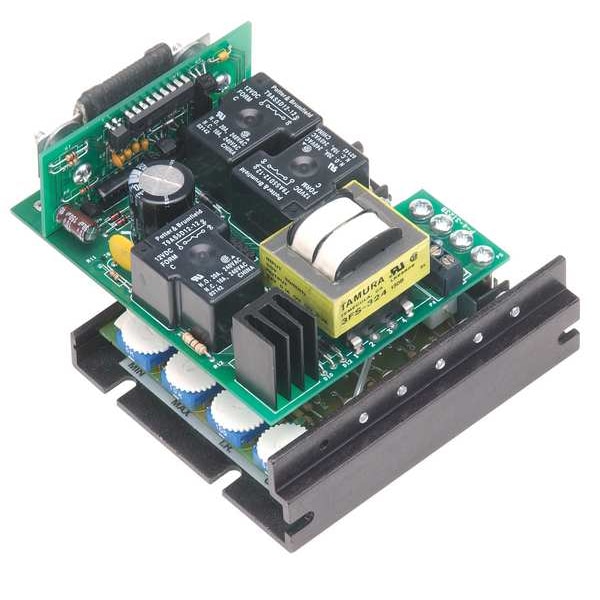

DC Speed Control, 90VDC, 5.5A

original price: $306.80
7% off
new price: $284.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Enclosure Chassis
  • Max. Amps 5.5 A
  • Voltage Output 90V DC
  • Speed Range 50:1
  • Rotation Reversible
See all product information

Product Information

Dimensions

Depth 2.65 in
Height 6.25 in
Width 3.75 in
Overall Width 6.25 in
Overall Height 7 in
Overall Depth 4.06 in

Details

Item DC Speed Control
Enclosure Chassis
Max. Amps 5.5 A
Voltage Output 90V DC
Speed Range 50:1
Rotation Reversible
External Switches None
AC Input Voltage 120V AC
DC Speed Control SCR
Standards cULus Listed, RoHS
Follower Circuit No
Mount Type Chassis
Dynamic Braking Yes
Accepts Tach Feedback No
Linear Acceleration Fixed 0.5 sec
Speed Regulation +/-1% with Armature Voltage Feedback
Operating Temp. -10 Degrees to 45 Degrees C
Includes Speed Potentiometer Knob and Dial Plate
Current/Torque Limit Adjustable
Shunt Wound Volts 100V DC
HP @ Lower Volts 1/8 to 1/2
IR Compensation Adjustable
Maximum Linear Acceleration 0.5 sec
Maximum Current 5.5 A
Operating Temperature -10 Degrees to 45 Degrees C
Series Series 130
Shunt Wound Voltage 100V DC
Lower Voltage Motor Output Power 1/8 to 1/2 hp
Higher Voltage Motor Output Power 90 V DC
Enclosure Type Open
Product Type DC Speed Control

Description

DC Speed Control, DC Speed Control SCR, Lower Voltage Motor Output Power 1/8 to 1/2 hp, AC Input Voltage 120V AC, Voltage Output 90V DC, Speed Range 50:1, Rotation Reversible, External Switches None
