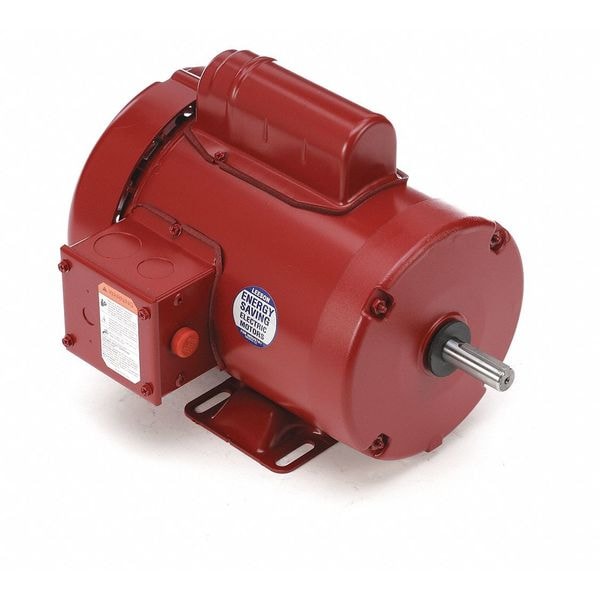

Farm Duty Motor, Capacitor-Start, 1 HP, 115/208-230V AC, 1,725 Nameplate RPM, 56 Frame

Hover or click to zoom Tap to zoom
Key Features
  • Motor Sub Application: High Torque
  • Item: Farm Duty Motor
  • Motor Design: Capacitor-Start
  • Phase: Single
  • RPM Range: 1,701-1,800
  • Voltage: 115/208-230V AC
  • Frame: 56
  • Motor Service Factor: 1.15
See full product details
$410.90
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Leeson #110088.00 Specifications

  • Motor Sub Application: High Torque
  • Item: Farm Duty Motor
  • Motor Design: Capacitor-Start
  • Phase: Single
  • HP: 1
  • RPM Range: 1,701-1,800
  • Voltage: 115/208-230V AC
  • Frame: 56
  • Motor Service Factor: 1.15
  • Motor Thermal Protection: Manual
  • Motor Enclosure Design: Totally Enclosed Fan-Cooled
  • Nameplate RPM: 1,725
  • Motor Application: Farm Duty
  • Motor Frame Material: Steel
  • Motor Mounting Position: Horizontal
  • Motor Mounting Type: Rigid Base
  • Motor Shaft Design: Keyed
  • Motor Shaft Rotation: CW/CCW
  • Standards: CSA (LR2025), UL (E49747)
  • Item - Farm Duty Motors: Farm Duty Motor
  • Overall Length: 12 in
  • Full Load Amps: 14.0/7.1-7.0
  • Duty: Continuous
  • Motor Efficiency Group: Standard Efficient
  • Motor Bearings: Ball
  • Shaft Length: 1 7/8 in
  • Hz: 60
  • Frame Material: Rolled steel
  • Length Less Shaft: 10 1/8 in
  • Max. Ambient Temperature: 40 Degrees C
  • Ins. Class: B
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
  • Shaft Dia.: 5/8 in
  • Nominal Efficiency: 74 %
  • Finish: Enamel
  • Capacitor Required: Yes
  • Weight: 29 lb
  • No. of Speeds: 1
  • Max. Ambient Temp.: 40 Degrees C
  • Usable @ 208V: Yes
  • Usable @ 200V: No
  • Duty Cycle: Continuous
  • Manufacturers Warranty Length: 1 yr
  • Country of Origin (subject to change): United States

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.0/7.1-7.0, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
