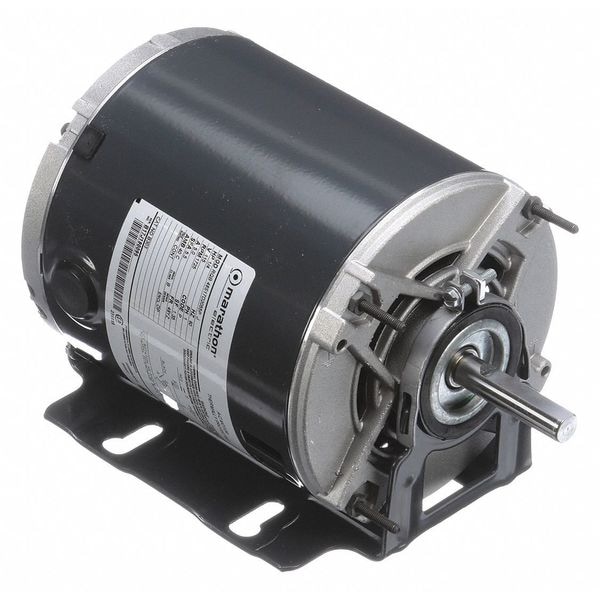

Condenser Fan Motor, 1/4 HP, 48Y Frame
- Mfr # 048S17D2055
- Zoro # G7342717
product price:Â
$
188.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Split-Phase
Phase
Single
HP
1/4
RPM Range
1,701-1,800
No. of Speeds
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 048S17D2055
- Zoro #
- G7342717
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Shaft Dia.
- 1/2 in
- Shaft Length
- 1 13/16 in
- Overall Length
- 9 9/16 in
- Resilient Ring Dia.
- 2 1/4 in
- Length Less Shaft
- 7 11/16 in
- Bolt Circle Dia.
- 5-1/8"
- Manufacturers Warranty Length
- 1 yr
- Stud Size
- #8-32
- Body Dia.
- 5 5/8 in
- Frame Size
- 48YZ
- Shaft Diameter
- 1/2 in
- Body Diameter
- 5.6 in
- Resilient Ring Diameter
- 2 1/4 in
Description
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 5.0 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
