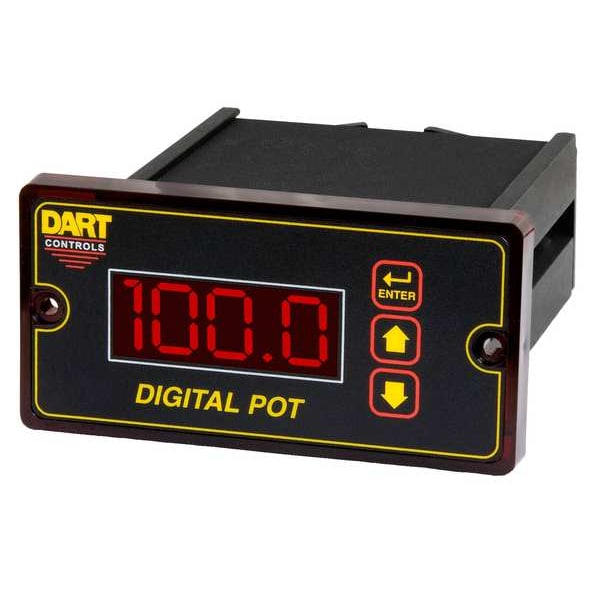

Dart Controls Potentiometer, 0 up to 24VDC Output, 4X DP4 - main

Potentiometer, 0 up to 24VDC Output, 4X

  • Mfr # DP4

  • Zoro # G2060256

product price: $373.99
/ea
Free Shipping & Returns

Key Features

Voltage Output
0 to 24V DC
Includes
Gasket Kit for NEMA 4X Panel Installation
For Use With
New and Existing AC or DC Drive Systems Where Precise, Repeatable Speed Setting and Digital Readout are Desired, and Where High Vibration and Other Environmental Factors Can Cause Normal Speedpot Settings to Drift
Input Voltage
85 to 265V AC
Display
LED
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DP4
Zoro #
G2060256
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Digit Height - Maximum
0.5 in
Overall Height
1.66 in
Cutout DIN Size
1/8
Digit Height - Minimum
0.5 in
Cutout Diameter
3 5/8 in
Overall Depth
4.63 in
Overall Width
3.62 in

Details

Item
Digital Panel Meter
Voltage Output
0 to 24V DC
Includes
Gasket Kit for NEMA 4X Panel Installation
For Use With
New and Existing AC or DC Drive Systems Where Precise, Repeatable Speed Setting and Digital Readout are Desired, and Where High Vibration and Other Environmental Factors Can Cause Normal Speedpot Settings to Drift
Input Voltage
85 to 265V AC
Display
LED
Type
Digital
Mfr. Stock No.
DP4
Style
1/8 DIN
Output
0 to 24VDC
Relay DC Contact Rating
28VDC @ 1A
AC Voltage Input - Minimum
120 V AC
Parameters Measured
AC Voltage
AC Voltage Input - Maximum
240 V AC
Number of Display Digits
4
NEMA Enclosure Rating
4, 4X
Product Type
Digital Panel Meter
Percent Display - Maximum
9,999 %
Digital Display Screen Color
Red
Display Span - Maximum
9,999
Percent Display - Minimum
0 %
Display Span - Minimum
0
Temperature Display - Maximum
113 Degrees F
Relay Contact Form
SPDT
Relay AC Contact Rating
250VAC @ 5A
Digital Display Screen Type
LED
Terminal Connection Type
Internal Removable Terminal Blocks
Temperature Display - Minimum
14 Degrees F

Description

Digital Panel Meter, Digital, LED Display, Not Applicable Interface, Output 0 to 24VDC, Style 1/8 DIN, Includes Gasket Kit for NEMA 4X Panel Installation, Manufacturers Warranty Length 1 yr
