Shop DAYTON

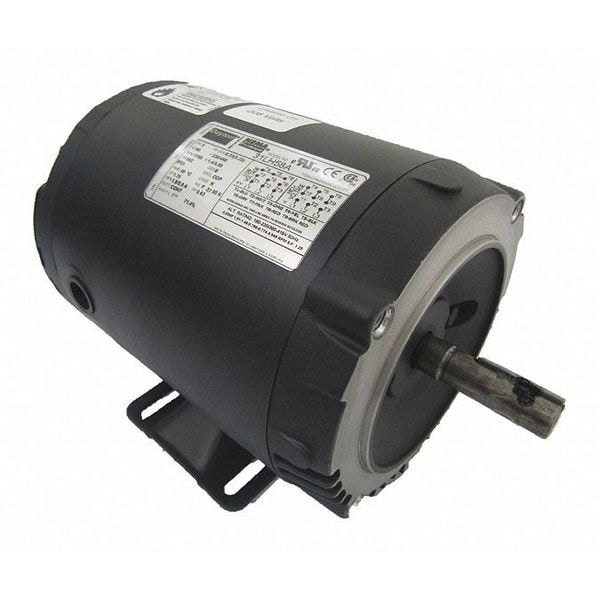

Three-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 1,140 Nameplate RPM

  • Mfr # 31LH58

  • Zoro # G9096324

product price:  $223.99
/ea
Free Shipping & Returns

Key Features

HP
1/3
Nameplate RPM
1,140
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.5/0.70 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
31LH58
Zoro #
G9096324
UPC #
190735255254
Country of Origin
Mexico

Dimensions

Length Less Shaft
8 1/2 in
Overall Length
10 5/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Diameter
5 7/8 in
Body Diameter
6.45 in
Shaft Diameter
5/8 in
Frame Size
56C

Details

Item
General Purpose Motor
HP
1/3
Nameplate RPM
1,140
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.5/0.70 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.35
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
71.4 %
Standards
CE, CSA, UL
Footnotes
15,16
Includes
Shaft Key
Inverter Rated
Yes
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Thermal Protection
None
Capacitor Required
No
Duty Cycle
Continuous
Shaft Design
Keyed
Product Type
General Purpose Motor
Weight
8 23/32 kg
Conduit Box Location
Interior
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Bearing Lubrication Type
Permanently Lubricated
Application
General Purpose
Number of Speeds
1
Frame Material
Steel
Manufacturers Warranty
1 yr
Usable @ 200V
Not Usable at 200V
Full Load Current @ 60 Hz
1.4/0.698 A
Variable Torque Rating
1000:1
Bearing Type
Ball
Insulation Class
F
Frequency
60 Hz
Inverter Rating
Inverter Rated
Efficiency Rating
NEMA Premium Efficiency
Bearing Protection Type
No Protection
Usable @ 208V
Not Usable at 208V
Nameplate Service Factor @ 60 Hz
1.35

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/3 HP, Nameplate RPM 1,140, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.5/0.70 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 71.4 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
