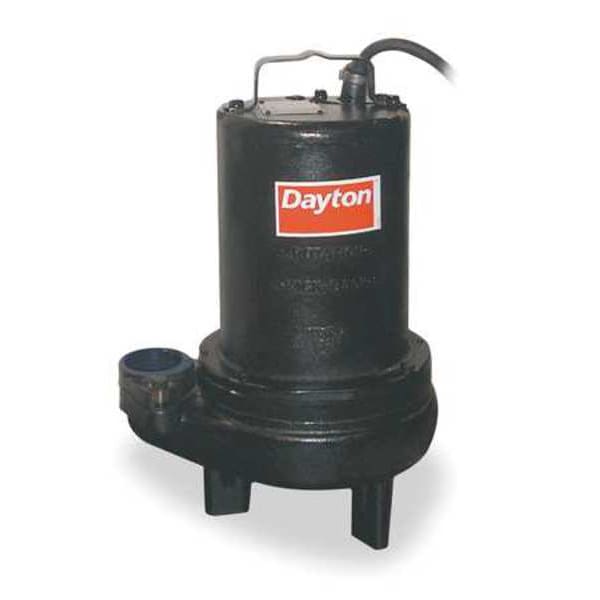

Dayton 1 HP 2" Manual Submersible Sewage Pump 230V 4LE21 - main

1 HP 2" Manual Submersible Sewage Pump 230V

  • Mfr # 4LE21

  • Zoro # G0738787

product price: $1,543.99
/ea
Free Shipping & Returns

Key Features

HP
1
Phase - Pumps
3
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
303 Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4LE21
Zoro #
G0738787
UPC #
190735329566
Country of Origin
China

Dimensions

Max. Diameter Solids
2 in
Max. Dia. Solids
2"
Height
21-1/4"
Cord Length - Pumps
20 ft.
Diameter
16-23/32"
Cord Length
20 ft
Overall Height
21 1/4 in
Body Dia.
16 23/32 in
Discharge Dia.
2 in
Discharge Diameter
2 in
Solids Diameter - Maximum
2 in
Body Diameter
16 3/4 in

Details

HP
1
Phase - Pumps
3
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
303 Stainless Steel
Flow Rate @ 10 Ft. of Head
195 gpm
Max. Head
36 ft
Impeller Material
Cast Iron
Pump Type
Manual
Motor RPM
1750
Shaft Seal Material - Pumps
Silicone Carbide
GPM of Water @ 20 Ft. of Head
130
Discharge NPT
2"
GPM of Water @ 10 Ft. of Head
195
GPM of Water @ 15 Ft. of Head
165
Switch Type - Pumps
No Switch Included
Housing Material
Cast iron
Voltage - Pumps
200 to 240VAC
Thermal Protection
No
Max. Liquid Temp.
130 Degrees F
Agency Compliance
CSA
Voltage
200 to 230
Phase
Three
Item - Sewage Pumps
Submersible Sewage Pump
Switch Type
None
Max. Head - Pumps
36 ft.
Input Phase AC
3
GPM of Water @ 25 Ft. of Head
95
Amps - Pumps
4.90
GPM of Water @ 30 Ft. of Head
48
Impeller Material - Pumps
Cast Iron
Shaft Seal
Silicon Carbide
Bearing Type
Ball
Item
Sewage Ejector Pump
Amps
4.90 A
Pump Body Material
Cast Iron
Motor Type
0
Switch Electrical Connection
No Switch Included
Gauge/Conductor
18/3
Flow Rate @ 20 Ft. of Head
130 gpm
Rated Voltage
200 to 240V AC
Flow Rate @ 15 Ft. of Head
165 gpm
RPM
1,750 RPM
Discharge
2 in NPT
Discharge Standard
NPT
Standards
CSA
Type
Manual
Current
4.90 A
Horsepower
1 hp
Rotation Speed - Maximum
1,750 RPM
Liquid Temperature - Maximum
130 Degrees F
Shaft Seal Material
Silicon Carbide
Flow Rate @ 10 ft of Head
195 gpm
Feet of Head - Maximum
36 ft

Description

Sewage Ejector Pump, HP 1, Rated Voltage 200 to 240V AC, Phase - Pumps 3, Amps 4.90 A, Motor Type 0, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Silicone Carbide, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, On Point Not Applicable, Off Point Not Applicable, Flow Rate @ 10 Ft. of Head 195 gpm, Flow Rate @ 15 Ft. of Head 165 gpm, Flow Rate @ 20 Ft. of Head 130 gpm, Max. Diameter Solids 2 in, Body Dia. 16 23/32 in
