  9. 2" 1/2 HP Titanium Submersible Pump
Shop All Submersible Sewage Pumps
Tsurumi

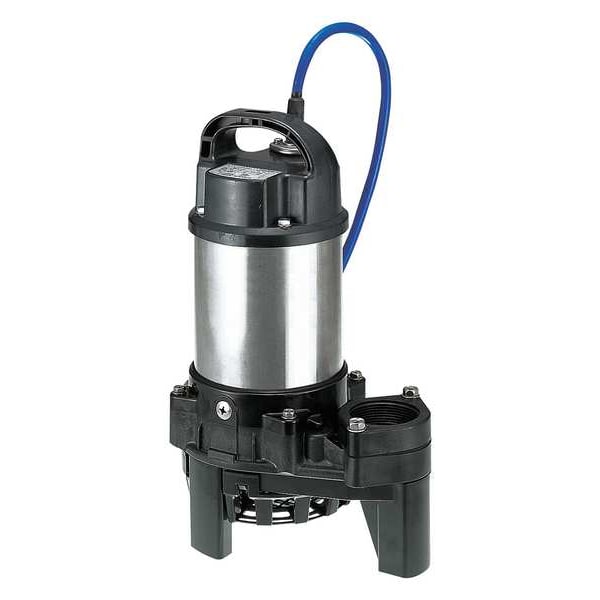

2" 1/2 HP Titanium Submersible Pump

product price: $1,393.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • HP 1/2
  • Phase - Pumps 1
  • Switch Actuation No Switch Included
  • Body Material Titanium
  • Base Material Resin
See all product information

Product Information

Dimensions

Max. Diameter Solids 25/64 in
Max. Dia. Solids 25/64"
Cord Length - Pumps 32 ft.
Height 14-3/16"
Manufacturers Warranty Length 2 yr
Cord Length 32 ft
Diameter 9-5/16"
Min. Sump Pit Dia. 8 in
Body Dia. 9 5/16 in
Discharge Dia. 2 in
Overall Height 14 3/16 in

Details

HP 1/2
Phase - Pumps 1
Switch Actuation No Switch Included
Body Material Titanium
Base Material Resin
Flow Rate @ 10 Ft. of Head 72 gpm
Max. Head 43 ft
Impeller Material Glass Fibre Reinforced Plastic
Thermal Protection Yes
Pump Type Electric Submersible
Input Phase AC 1
GPM of Water @ 25 Ft. of Head 40
Agency Compliance UL 778
GPM of Water @ 40 Ft. of Head 6
GPM of Water @ 30 Ft. of Head 27
Item Sewage Ejector Pump
Max. Liquid Temp. 104 Degrees F
Impeller Material - Pumps Resin
GPM of Water @ 5 Ft. of Head 79
Shaft Seal Material - Pumps Silicone Carbide
Switch Type None
Phase 1
Pump Body Material Titanium
GPM of Water @ 15 Ft. of Head 62
Amps - Pumps 5.80
Item - Sewage Pumps Submersible Sewage Pump
Motor Type Air Filled
Bearing Type Double Shielded Pre Lubricated Ball
Amps 5.80
Shaft Seal Silicon Carbide
Voltage 115
GPM of Water @ 10 Ft. of Head 72
Switch Type - Pumps No Switch Included
Housing Material Titanium
GPM of Water @ 20 Ft. of Head 52
Discharge NPT 2"
Max. Head - Pumps 43 ft.
Motor RPM 3397
Voltage - Pumps 120VAC
Discharge Standard NPT
RPM 3,397 RPM
Flow Rate @ 20 Ft. of Head 52 gpm
Switch Electrical Connection No Switch Included
Discharge 2 in FNPT
Flow Rate @ 40 Ft. of Head 6 gpm
Discharge Gender Female
Rated Voltage 120V AC
Off Point 516 in
On Point 4 1/2 in
Duty Cycle Continuous
Flow Rate @ 15 Ft. of Head 62 gpm

Description

Sewage Ejector Pump, HP 1/2, Rated Voltage 120V AC, Phase - Pumps 1, Amps 5.80, Motor Type Air Filled, Body Material Titanium, Impeller Material Glass Fibre Reinforced Plastic, Shaft Seal Material - Pumps Silicone Carbide, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, On Point 4 1/2 in, Off Point 516 in, Flow Rate @ 10 Ft. of Head 72 gpm, Flow Rate @ 15 Ft. of Head 62 gpm, Flow Rate @ 20 Ft. of Head 52 gpm, Flow Rate @ 40 Ft. of Head 6 gpm
