Shop DAYTON

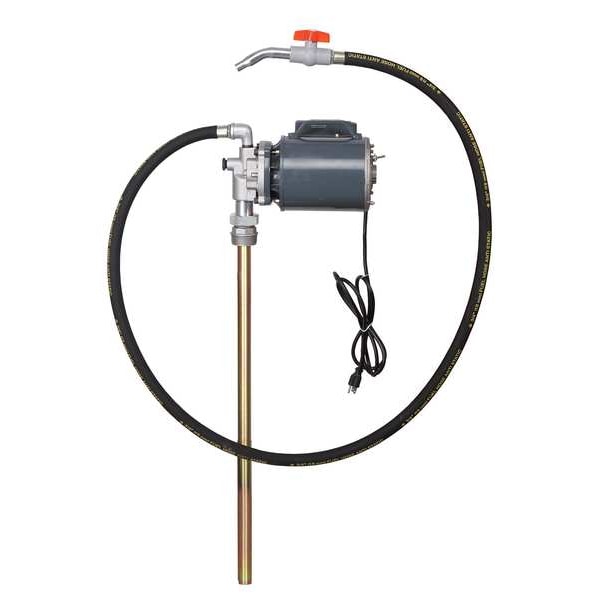

1/2 HP 115 V Electric Oil Transfer Pump

  • Mfr # 12F735

  • Zoro # G5140371

product price:  $659.99
/ea
Free Shipping & Returns

Key Features

Includes
Hose
Max. Viscosity
1,000 SUS
Motor Type
Air Cooled with Thermal Protection with UL listed frame
Voltage
115 V AC
Motor RPM
1,720 RPM
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
12F735
Zoro #
G5140371
UPC #
190735114759
Country of Origin
India

Dimensions

Width (In.)
7 in
Hose Length (Ft.)
8 ft
Manufacturers Warranty Length
1 yr
Length (In.)
14 1/2 in
Suction Tube Length (In.)
34
Height (In.)
9 in
Power Cord Length (Ft.)
8 ft
Cord Length
8 ft
Overall Length
14 1/2 in
Height Above Container
9 in
Suction Tube Length
34 in
Hose Length
8 ft

Details

Item
Electric Drum Pump
Includes
Hose
Max. Viscosity
1,000 SUS
Motor Type
Air Cooled with Thermal Protection with UL listed frame
Voltage
115 V AC
Motor RPM
1,720 RPM
RPM
1,720 RPM
Shaft Material
Steel
Max. Pressure (PSI)
65 psi
Outlet
3/4 in NPT
Self-Priming
Yes
Application
Antifreeze, Cutting Oils, Hydraulic Fluids, Liquid Soap, Non Flammable Oil Based Solvents, Oil based Herbicides, Oils, Synthetic Oils, Used Oil
Hose Material
Rubber
HP
1/2 hp
Tube Material
Steel
Max. Viscosity (SSU)
1,000 SUS
Max. Temp.
140 Degrees F
Lip Seal
Yes
Body Material
Aluminum
Type
Electric
GPM Max.
4 gpm
Suction Lift (Ft.)
6
Inlet
1 in NPT
Gear Material
Steel
Motor Frame
56C
Duty Cycle
Continuous
Nozzle Shutoff
Manual
Amps
9 A
Motor HP
1/2 hp
Max. Fluid Temp.
140 Degrees F
Hose Tube Material
Nitrile
Compatible Chemicals
Anti-Freeze, Cutting Oil, Hydraulic Fluid, Liquid Soap, Non Flammable Oil Based Solvents, Oil, Oil Based Herbicides, Synthetic Oil, Used Oil
Housing Material - Pumps
Aluminum
For Media Type
Anti-Freeze, Hydraulic Fluid, Liquid Soap, Oil
Nozzle Operation
Manual
Discharge Connection Type
NPT
Max. Head Pressure
65 psi
Includes Bung Adapter
Yes
Includes Suction Tube
Yes
Rated Voltage
115 V AC
Includes Nozzle
Yes
Max. Flow Rate
4 gpm
Includes Discharge Hose
Yes
Full Load Amps
9.0 A
Max. Outlet Pressure
65 psi
Maximum Head Pressure
65 psi
Maximum Viscosity
1,000 SUS
Maximum Outlet Pressure
65 psi
Full Load Current
9 A
Chemical Compatibility
Antifreeze, Hydraulic Oil, Oil, Herbicides, Synthetic Oil
Motor Horsepower
1/2 hp
Motor Speed
1,720 RPM
Maximum Fluid Temperature
140 Degrees F
Housing Material
Aluminum
Maximum Flow Rate
4 gpm

Description

Electric Drum Pump, Max. Head Pressure 65 psi, Max. Outlet Pressure 65 psi, Rated Voltage 115 V AC, Hose Length 8 ft, Suction Tube Length 34 in, Cord Length 8 ft, Includes Bung Adapter Yes, Nozzle Operation Manual, Includes Discharge Hose Yes, Self-Priming Yes, Compatible Chemicals Anti-Freeze, Cutting Oil, Hydraulic Fluid, Liquid Soap, Non Flammable Oil Based Solvents, Oil, Oil Based Herbicides, Synthetic Oil, Used Oil, Discharge Connection Type NPT, Includes Nozzle Yes

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
