Dayton

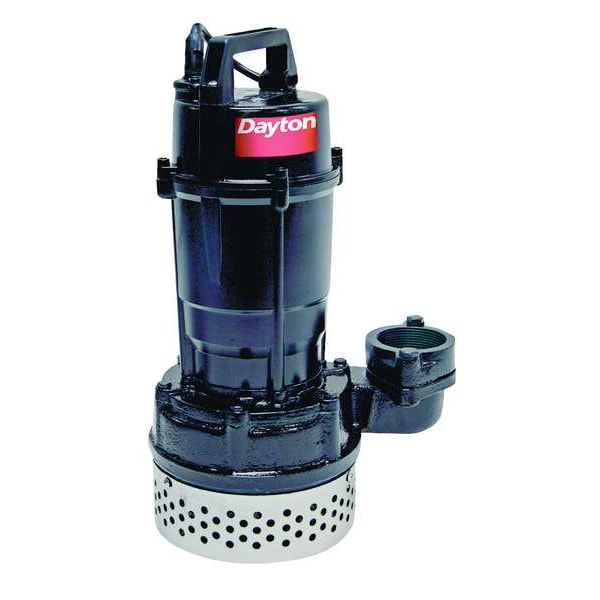

1/2 HP 2" F Submersible Sump Pump 120V AC None

product price: $336.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cord Length 10 ft
  • Discharge NPT 2" F
  • Housing Material Aluminum
  • HP 1/2
  • Hz 60 Hz
See all product information

Product Information

Dimensions

Cord Length 10 ft
Max. Diameter Solids 1/4 in
Height 16-1/4"
Max. Dia. Solids 1/4"
Min. Sump Pit Dia. 11 in
Cord Length - Pumps 10 ft.
Diameter 10"
Body Dia. 10 in
Discharge Dia. 2 in
Overall Height 16 1/4 in

Details

Discharge NPT 2" F
Housing Material Aluminum
HP 1/2
Hz 60 Hz
Impeller Material Engineered Polymer
Max. Head 32 ft
Max. Temp. 104 Degrees F
Motor RPM 3450
Motor Type Permanent Split Capacitor
Shaft Seal (2) Carbon/Ceramic, (1) Buna N
Voltage 120V AC
Phase single
Max Head - Pumps 32 ft.
Alarm Included No
Impeller Material - Pumps Engineered Polymer
GPM of Water @ 10 Ft. of Head 61
Thermal Protection Yes
Item - Sump Pumps Submersible Sump Pump
Agency Compliance CSA
Gauge/Conductor 18/3
GPM of Water @ 5 Ft. of Head 75
Voltage - Pumps 120VAC
Features Discharge Height 5-1/2"
Amps - Pumps 4.80
GPM of Water @ 30 Ft. of Head 9
Max. Head - Pumps 32 ft.
Amps 4.8 A
Max. Liquid Temp. 104 Degrees F
Shaft Seal Material - Pumps Buna-N, Carbon, Ceramic
Base Material Cast Iron
Switch Type - Pumps No Switch Included
GPM of Water @ 20 Ft. of Head 30
Duty Continuous
GPM of Water @ 25 Ft. of Head 36
Item Submersible Sump Pump
NEC Cord Designation SJTW
Alarm No
GPM of Water @ 15 Ft. of Head 43
Pump Body Material Aluminum
Mechanical Seal CRB/CMC
Bearing Type Ball
Switch Type None
Duty Cycle Continuous
Flow Rate @ 20 Ft. of Head 30 gpm
Flow Rate @ 15 Ft. of Head 43 gpm
Discharge 2 in FNPT
Flow Rate @ 10 Ft. of Head 61 gpm
RPM 3,450 RPM
Switch Actuation No Switch Included
Discharge Gender Female
Rated Voltage 120V AC
Switch Electrical Connection No Switch Included
Discharge Standard NPT
Flow Rate @ 5 Ft. of Head 75 gpm
Body Material Aluminum

Description

Submersible Sump Pump, HP 1/2, Rated Voltage 120V AC, Hz 60 Hz, Amps 4.8 A, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Body Material Aluminum, Impeller Material Engineered Polymer, Shaft Seal Material - Pumps Buna-N, Carbon, Ceramic, Flow Rate @ 5 Ft. of Head 75 gpm, Flow Rate @ 10 Ft. of Head 61 gpm, Flow Rate @ 15 Ft. of Head 43 gpm, Flow Rate @ 20 Ft. of Head 30 gpm, Max. Head 32 ft, Min. Sump Pit Dia. 11 in, Body Dia. 10 in, Overall Height 16 1/4 in
