Shop TSURUMI

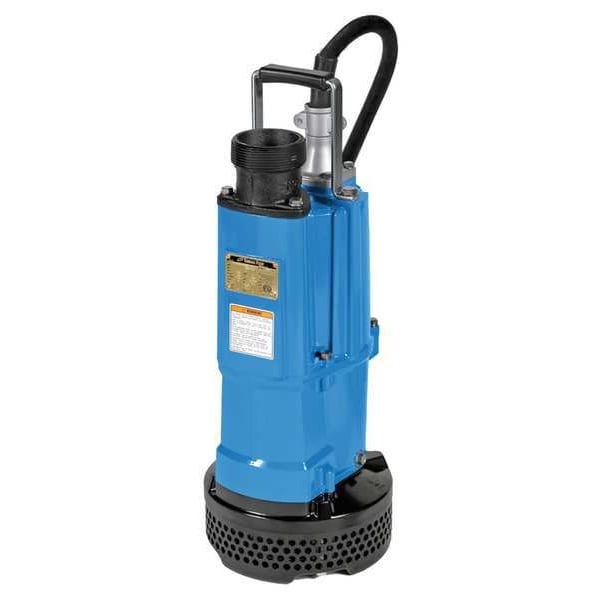

3 HP 3" Submersible Sump Pump 220V No Switch Included

  • Mfr # NK4-22 (230V)

  • Zoro # G7015294

product price:
$
2,632.99
/ea
Free Shipping & Returns

Key Features

Cord Length
32 ft
Discharge NPT
3"
Housing Material
Die Cast Aluminum
HP
3
Hz
60
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NK4-22 (230V)
Zoro #
G7015294
UPC #
894787000298
Country of Origin
Japan

Dimensions

Cord Length
32 ft
Width
9-7/16"
Max. Diameter Solids
5/16 in
Max. Dia. Solids
5/16"
Height
24-1/2"
Length
24-1/2"
Min. Sump Pit Dia.
14 in
Cord Size
14/3
Diameter
9-7/16"
Manufacturers Warranty Length
2 yr
Cord Length - Pumps
32 ft.
Body Dia.
9 7/16 in
Width at Widest Point
9 1/2 in
Minimum Water Depth
14 in
Overall Height
24 1/2 in
Discharge Dia.
3 in
Discharge External Diameter
3 in
Solids Diameter - Maximum
5/16 in
Operating Water Depth - Minimum
14 in
Sump Pit Diameter - Minimum
14 in
Body Diameter
9 1/2 in
Depth Pumped - Minimum
4 1/2 in

Details

Discharge NPT
3"
Housing Material
Die Cast Aluminum
HP
3
Hz
60
Impeller Material
Ductile Iron
Max. Head
85 ft
Motor RPM
3465
Motor Type
PSC
Shaft Seal
Silicone Carbide
Voltage
220V
Phase
Single
Insulation Class
B
Pump Body Material
Die Cast Aluminum
Input Phase AC
1
Item
Submersible Sump Pump
Duty
Continuous
Impeller Material - Pumps
Ductile Iron
Max. Liquid Temp.
104 Degrees F
GPM of Water @ 35 Ft. of Head
98
GPM of Water @ 25 Ft. of Head
110
Thermal Protection
Automatic
Pump RPM
3465
GPM of Water @ 10 Ft. of Head
126
Cord Type
3-Conductor STOW, Resists Water and Oil
Amps
13.00
Amps - Pumps
13.00
Voltage - Pumps
240VAC
GPM of Water @ 15 Ft. of Head
120
GPM of Water @ 20 Ft. of Head
114
Switch Type - Pumps
No Switch Included
GPM of Water @ 45 Ft. of Head
86
Handle
Top Carrying
Agency Compliance
Etl/Cetl
For Use With
Nonflammable Liquids
Shaft Seal Material - Pumps
Silicone Carbide
Max. Head - Pumps
85 ft.
Item - Dewatering Pumps
Utility/Dewatering Pump
Base Material
Steel
GPM of Water @ 40 Ft. of Head
92
GPM of Water @ 30 Ft. of Head
104
Switch Type
No Switch Included
Bearing Type
Double Shielded, Permanently Lubricated, High Temperature C3 Ball Bearings Rated for a B-10 Life
GPM of Water @ 5 Ft. of Head
130
Application
Nonflammable Liquids
Discharge Standard
NPT
Switch Actuation
No Switch Included
Flow Rate @ 20 Ft. of Head
114 gpm
Rated Voltage
230V AC
Duty Cycle
Continuous
Phase - Pumps
1
Flow Rate @ 10 Ft. of Head
126 gpm
Discharge
3 in MNPT
Body Material
Aluminum
RPM
3,465 RPM
Discharge Gender
Male
Flow Rate @ 15 Ft. of Head
120 gpm
Flow Rate @ 5 Ft. of Head
130 gpm
Pump Type
Construction Site and Residential Dewatering
Flow Rate - Maximum
131 gpm
Rotation Speed - Maximum
3,465 RPM
Motor Housing Material
Aluminum
Flow Rate @ 10 ft of Head
126 gpm
Discharge External Standard
NPT
Horsepower
3 hp
Liquid Temperature - Maximum
104 Degrees F
Frequency
60 Hz
Standards
Etl/Cetl
Flow Rate @ 5 ft of Head
130 gpm
Includes Garden Hose Adapter
No Garden Hose Adapter Included
Feet of Head - Maximum
85 ft
Discharge External Gender
Male
Volute Material
Iron
Current
13.00 A
For Media Type
Clear Water
Shaft Seal Material
Silicone
Series
NK
Power Source
Corded Electric
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Submersible Sump Pump, HP 3, Rated Voltage 220V AC, Hz 60, Phase - Pumps 1, Amps 13.00, Switch Actuation No Switch Included, Body Material Aluminum, Impeller Material Ductile Iron, Shaft Seal Material - Pumps Silicone Carbide, Flow Rate @ 5 Ft. of Head 130 gpm, Flow Rate @ 10 Ft. of Head 126 gpm, Flow Rate @ 15 Ft. of Head 120 gpm, Flow Rate @ 20 Ft. of Head 114 gpm, Max. Head 85 ft, Min. Sump Pit Dia. 14 in, Minimum Water Depth 14 in, Body Dia. 9 7/16 in, Width at Widest Point 9 1/2 in
