  9. 1220 CFM Gable Mount Attic Fan, 120V

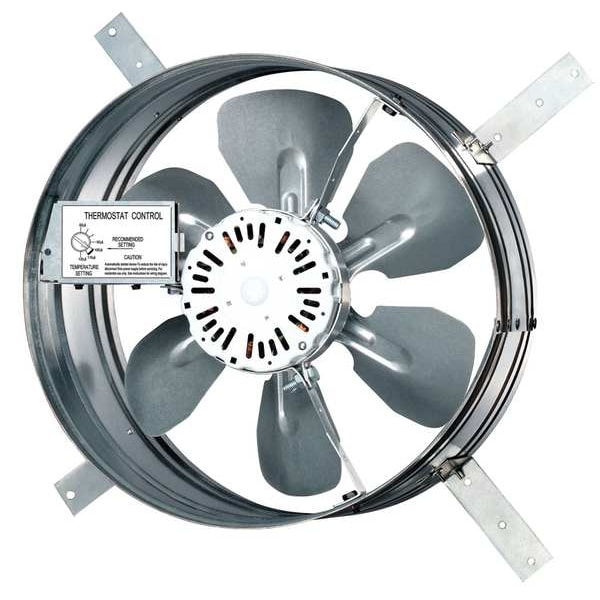

Dayton 1220 CFM Gable Mount Attic Fan, 120V 10W193 - main

1220 CFM Gable Mount Attic Fan, 120V

  • Mfr # 10W193

  • Zoro # G4274225

product price: $78.89
/ea
Free Shipping & Returns

Key Features

Voltage
120 VAC
Control Method - Roof Ventilators
Automatic
Max. Attic Area (Sq.-Ft.)
1,630 sq ft
Item - Roof Ventilators
Attic Ventilator
Hz
60
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10W193
Zoro #
G4274225
UPC #
190735110119
Country of Origin
China

Dimensions

Dome Dia. (In.)
15 1/4 in
Overall Length
15 in
Overall Diameter
15 in
Overall Height
8 in
Overall Width
15 in
Rough Opening Diameter
15 1/4 in

Details

Voltage
120 VAC
Control Method - Roof Ventilators
Automatic
Max. Attic Area (Sq.-Ft.)
1,630 sq ft
Item - Roof Ventilators
Attic Ventilator
Hz
60
HP
1/15 hp
Amps
3.1A
Watts
210 W
RPM
1,050 RPM
CFM @ 0.000-In. SP
1220
Free Air Intake Required (Sq.-Ft.)
4 sq ft
Dome Material
Galvanized Steel
Thermostat Temp. (Deg. F)
60 to 120
Item
Attic Exhaust Fan
Power Method - Roof Ventilators
120V
Type
Thermostatically Controlled Gable Mount
Mounting Location - Roof Ventilators
Gable
Includes
Metal Housing, Mounting Brackets, Thermostat
Included with Ventilator
Thermostat
Rough Opening Shape
Round
Maximum Motor Speed
1,050 RPM
Maximum Fan Speed
1,050 RPM
Includes Motor
Yes
Current
3.1 A
Airflow @ 0.000 in SP
1,220 cfm
High-Efficiency Motor
No
Includes Shutter
No
For High-Static Pressure Applications
No
Power Source
Electric Motor
Wattage
210 W
Control Type
Thermostat
Motor Horsepower
1/16 hp
Blade Material
Steel
Maximum Attic Area
1,630 sq ft
Nameplate Voltage
120V AC
Thermostat Temperature Range
60 Degrees to 120 Degrees F
Exhaust Airflow @ 0.000 in SP
1,140 cfm
Housing Material
Steel
Fire Safety Shut-Off
No
Frequency
60 Hz
Includes Thermostat
Yes
Includes Humidistat
No

Description

Attic Exhaust Fan, Control Type Thermostat, Blade Material Steel, Exhaust Airflow @ 0.000 in SP 1,140 cfm, Fire Safety Shut-Off No, High-Efficiency Motor No, Housing Material Steel, Includes Humidistat No, Includes Shutter No, Includes Thermostat Yes, Maximum Attic Area 1,630 sq ft, Motor Horsepower 1/16 hp, Mounting Location Gable, Nameplate Voltage 120V AC, Overall Diameter 15 in, Overall Height 8 in, Overall Length 15 in, Overall Width 15 in, Dome Shape Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This item has been restricted from sale in the following states: NJ
