  9. DAYTON Alu/Steel 8"H 21.25"W Exhst Fan
Shop All Attic Exhaust Ventilators
Dayton

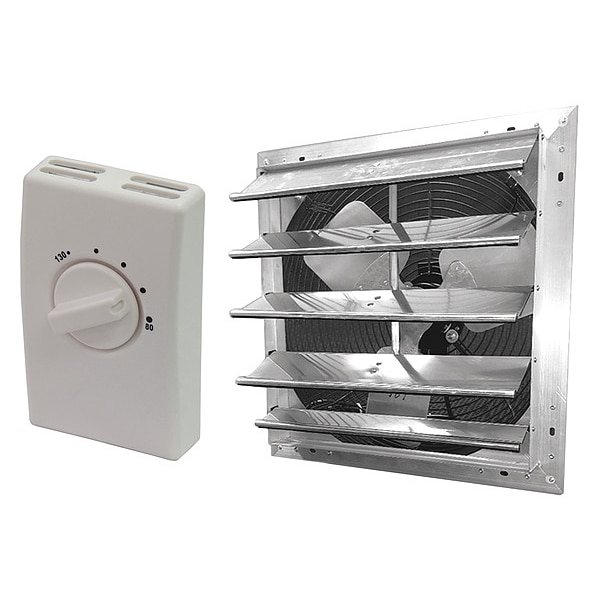

DAYTON Alu/Steel 8"H 21.25"W Exhst Fan

product price: $220.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Control Method - Roof Ventilators Automatic
  • Max. Attic Area (Sq.-Ft.) 2,300 sq ft
  • Hz 60
  • HP 1/15 hp
  • Amps 1.3
See all product information

Product Information

Dimensions

Overall Length 8 in
Overall Height 21 1/4 in
Overall Width 21 1/4 in
Rough Opening Diameter 19 in

Details

Control Method - Roof Ventilators Automatic
Max. Attic Area (Sq.-Ft.) 2,300 sq ft
Item - Roof Ventilators Exhaust Ventilator
Hz 60
HP 1/15 hp
Amps 1.3
RPM 1,075 RPM
CFM @ 0.000-In. SP 1860
CFM @ 0.125-In. SP 850 cfm
Free Air Intake Required (Sq.-Ft.) 5.5 sq ft
Opening Required (In.) 19 x 19
Thermostat Temp. (Deg. F) 90 to 130
Power Method - Roof Ventilators 120V
Includes Guard, Shutter, Thermostat
Mounting Location - Roof Ventilators Gable
Item Attic Exhaust Fan
For High-Static Pressure Applications No
Includes Humidistat No
Fire Safety Shut-Off No
Airflow @ Static Pressure 850 cfm @ 1/8 in
Control Type Thermostat
Frequency 60 Hz
Maximum Motor Speed 1,075 RPM
Current 1.3 A
Housing Material Aluminum
Motor Horsepower 1/15 hp
Wattage 126 W
Nameplate Voltage 120V AC
High-Efficiency Motor No
Blade Material Aluminum
Thermostat Temperature Range 90 Degrees to 130 Degrees F
Includes Shutter Yes
Airflow @ 0.000 in SP 1,860 cfm
Rough Opening Shape Round
Includes Thermostat Yes
Maximum Attic Area 2,300 sq ft
Power Source Electric Motor
Includes Motor Yes
Maximum Fan Speed 1,075 RPM
Exhaust Airflow @ 0.125 in SP 850 cfm
Exhaust Airflow @ 0.000 in SP 1,860 cfm

Description

Attic Exhaust Fan, Control Type Thermostat, Blade Material Aluminum, Exhaust Airflow @ 0.000 in SP 1,860 cfm, Fire Safety Shut-Off No, High-Efficiency Motor No, Housing Material Aluminum, Includes Humidistat No, Includes Shutter Yes, Includes Thermostat Yes, Maximum Attic Area 2,300 sq ft, Motor Horsepower 1/15 hp, Mounting Location Gable, Nameplate Voltage 120V AC, Overall Height 21 1/4 in, Overall Length 8 in, Overall Width 21 1/4 in, Dome Shape Not Applicable, Dome Width Not Applicable
