Shop DAYTON

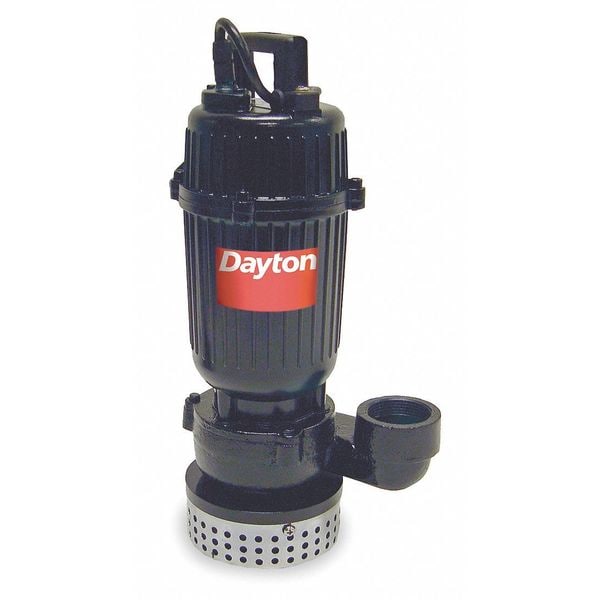

1/3 HP 1-1/2" F Submersible Sump Pump 120V AC None

  • Mfr # 1XHV6

  • Zoro # G1746997

product price:
$
132.99
/ea
Free Shipping & Returns

Key Features

Cord Length
10 ft
Discharge NPT
1-1/2" F
Housing Material
Aluminum
HP
1/3
Hz
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1XHV6
Zoro #
G1746997
UPC #
190735149904
Country of Origin
China

Dimensions

Cord Length
10 ft
Cord Length - Pumps
13 ft.
Min. Sump Pit Dia.
8 in
Max. Dia. Solids
1/4"
Height
13-3/4"
Max. Diameter Solids
1/4 in
Diameter
7-1/2"
Manufacturers Warranty Length
1 yr
Overall Height
13 3/4 in
Body Dia.
7 1/2 in
Discharge Dia.
1 1/2 in
Discharge Diameter
1 1/2 in
Solids Diameter - Maximum
1/4 in
Body Diameter
7 1/2 in
Sump Pit Diameter - Minimum
18 in

Details

Discharge NPT
1-1/2" F
Housing Material
Aluminum
HP
1/3
Hz
60 Hz
Impeller Material
Engineered Polymer
Max. Head
29 ft
Max. Temp.
104 Degrees F
Motor RPM
3450
Motor Type
Permanent Split Capacitor
Shaft Seal
(2) Carbon/Ceramic, (1) Buna N
Voltage
120V AC
Phase
Single
Max. Head - Pumps
29 ft.
Amps - Pumps
3.80
Shaft Seal Material - Pumps
Buna-N, Carbon, Ceramic
Impeller Material - Pumps
Engineered Polymer
Switch Type
None
Gauge/Conductor
18/3
GPM of Water @ 20 Ft. of Head
19
Agency Compliance
CSA
Alarm Included
No
Mechanical Seal
CRB/CMC
GPM of Water @ 25 Ft. of Head
9
Amps
3.8 A
Pump Body Material
Aluminum
Duty
Continuous
Switch Type - Pumps
No Switch Included
Thermal Protection
Auto
Alarm
No
Base Material
Cast Iron
Voltage - Pumps
120VAC
Item - Sump Pumps
Submersible Sump Pump
NEC Cord Designation
SJTW
GPM of Water @ 5 Ft. of Head
58
GPM of Water @ 30 Ft. of Head
2
Item
Submersible Sump Pump
GPM of Water @ 15 Ft. of Head
31
GPM of Water @ 10 Ft. of Head
46
Bearing Type
Ball
Max. Liquid Temp.
104 Degrees F
Application
Dewatering
Flow Rate @ 15 Ft. of Head
31 gpm
Discharge Gender
Female
Rated Voltage
120V AC
Body Material
Aluminum
Switch Actuation
No Switch Included
Switch Electrical Connection
No Switch Included
Flow Rate @ 10 Ft. of Head
46 gpm
Duty Cycle
Continuous
RPM
3,450 RPM
Flow Rate @ 5 Ft. of Head
58 gpm
Discharge
1 1/2 in FNPT
Discharge Standard
NPT
Flow Rate @ 20 Ft. of Head
19 gpm
Standards
CSA
Series
Pro Series
For Industry
Commercial, Residential
Flow Rate @ 10 ft of Head
46 gpm
Hazardous Location Class
Not Rated
Liquid Temperature - Maximum
104 Degrees F
Feet of Head - Maximum
29 ft
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber
Requires Control Panel
No Control Panel Required
Power Source
Corded Electric
Horsepower
1/3 hp
Volute Material
Cast Iron
Current
3.8 A
Frequency
60 Hz
Includes Alarm
No Alarm Included
For Media Type
Clear Water
Rotation Speed - Maximum
3,450 RPM
Motor Housing Material
Cast Iron
Installation
Submersible
Flow Rate @ 30 ft of Head
0 gpm
Impeller Design
Open
Shaft Seal Type
Double Mechanical
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Submersible Sump Pump, HP 1/3, Rated Voltage 120V AC, Hz 60 Hz, Amps 3.8 A, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Off Point Not Applicable, On Point Not Applicable, Body Material Aluminum, Impeller Material Engineered Polymer, Shaft Seal Material - Pumps Buna-N, Carbon, Ceramic, Flow Rate @ 5 Ft. of Head 58 gpm, Flow Rate @ 10 Ft. of Head 46 gpm, Flow Rate @ 15 Ft. of Head 31 gpm, Flow Rate @ 20 Ft. of Head 19 gpm, Max. Head 29 ft
