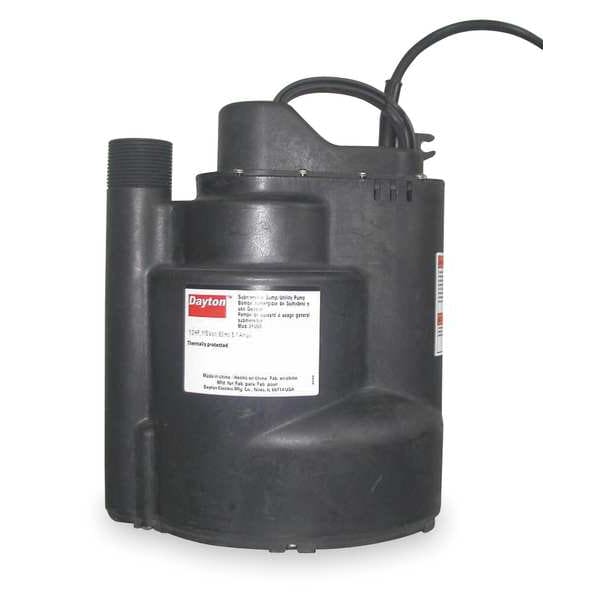

Dayton 1/4 HP 1-1/4" M Submersible Sump Pump 120V AC Vertical 3YU57 - main

1/4 HP 1-1/4" M Submersible Sump Pump 120V AC Vertical

  • Mfr # 3YU57

  • Zoro # G2033771

product price: $228.99
/ea
Free Shipping & Returns

Key Features

Cord Length
10 ft
Discharge NPT
1-1/4" M
Housing Material
Polypropylene
HP
1/4
Hz
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3YU57
Zoro #
G2033771
UPC #
190735296417
Country of Origin
China

Dimensions

Cord Length
10 ft
Height
11"
Cord Length - Pumps
10 ft.
Diameter
8-1/2"
Max. Diameter Solids
1/8 in
Max. Dia. Solids
1/8"
Min. Sump Pit Dia.
10 in
Discharge Dia.
1 1/4 in
Overall Height
11 in
Body Dia.
8 1/2 in
Discharge Diameter
1 1/4 in
Sump Pit Diameter - Minimum
10 in
Body Diameter
8 1/2 in
Solids Diameter - Maximum
1/8 in

Details

Discharge NPT
1-1/4" M
Housing Material
Polypropylene
HP
1/4
Hz
60 Hz
Impeller Material
Polyamide
Max. Head
21 ft
Max. Temp.
104 Degrees F
Motor RPM
3450
Motor Type
PSC
Shaft Seal
Carbon/Ceramic/Buna-N
Voltage
120V AC
Phase
Single
GPM of Water @ 5 Ft. of Head
27
GPM of Water @ 15 Ft. of Head
13
Item
Submersible Sump Pump
Bearing Type
Lubricated Ball
GPM of Water @ 10 Ft. of Head
21
Item - Sump Pumps
Submersible Sump Pump
Base Material
Polypropylene
Alarm Included
No
Pump Body Material
Polypropylene
Shaft Seal Material - Pumps
Carbon, Ceramic
NEC Cord Designation
SJTW
Impeller Material - Pumps
Polyamide
Amps
2.3 A
On Point
4 29/32 in
Max. Liquid Temp.
104 Degrees F
Max. Head - Pumps
21 ft.
Gauge/Conductor
18/3
Switch Type
Vertical
Off Point
1 49/64 in
Duty
Continuous
Switch Type - Pumps
Vertical
Mechanical Seal
Buna N
Voltage - Pumps
120VAC
Thermal Protection
Yes
GPM of Water @ 20 Ft. of Head
4
Amps - Pumps
2.30
Alarm
No
Rated Voltage
115V AC
Discharge
1 1/4 in MNPT
Switch Electrical Connection
Integral
Discharge Standard
NPT
Flow Rate @ 5 Ft. of Head
27 gpm
Flow Rate @ 10 Ft. of Head
21 gpm
Switch Actuation
Vertical Float
Body Material
Polypropylene
Duty Cycle
Continuous
Flow Rate @ 20 Ft. of Head
4 gpm
Flow Rate @ 15 Ft. of Head
13 gpm
Discharge Gender
Male
Includes Alarm
No Alarm Included
Liquid Temperature - Maximum
104 Degrees F
Motor Housing Material
Plastic
Impeller Design
Vortex
Hazardous Location Class
Not Rated
For Media Type
Clear Water, Trash Water
Feet of Head - Maximum
21.5 ft
Current
2.3 A
Horsepower
1/4 hp
Power Source
Corded Electric
Flow Rate @ 10 ft of Head
21.3 gpm
Volute Material
Plastic
Shaft Seal Material
Carbon/Ceramic
Frequency
60 Hz
Shaft Seal Type
Single Mechanical

Description

Submersible Sump Pump, HP 1/4, Rated Voltage 115V AC, Hz 60 Hz, Amps 2.3 A, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 1 49/64 in, On Point 4 29/32 in, Body Material Polypropylene, Impeller Material Polyamide, Shaft Seal Material - Pumps Carbon, Ceramic, Flow Rate @ 5 Ft. of Head 27 gpm, Flow Rate @ 10 Ft. of Head 21 gpm, Flow Rate @ 15 Ft. of Head 13 gpm, Flow Rate @ 20 Ft. of Head 4 gpm, Max. Head 21 ft, Min. Sump Pit Dia. 10 in, Body Dia. 8 1/2 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
