  9. 3/4 HP 1-1/2" F Submersible Sump Pump 120V AC None
Dayton

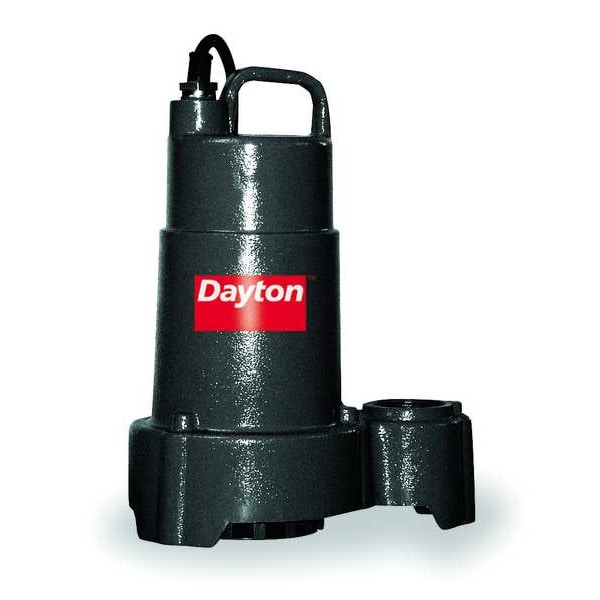

3/4 HP 1-1/2" F Submersible Sump Pump 120V AC None

Dayton 3/4 HP 1-1/2" F Submersible Sump Pump 120V AC None 3BB75
Tap to zoom
Hover or click to zoom
$372.54
  • Cord Length: 15 ft
  • Discharge NPT: 1-1/2" F
  • Housing Material: Cast iron
See full product details
This item ships free.
Total: $372.54

Dayton #3BB75 Specifications

  • Cord Length: 15 ft
  • Discharge NPT: 1-1/2" F
  • Housing Material: Cast iron
  • HP: 3/4
  • Hz: 60 Hz
  • Impeller Material: Cast Iron
  • Max. Head: 37.0 ft
  • Max. Temp.: 104 Degrees F
  • Motor RPM: 3450
  • Motor Type: Oil-Cooled
  • Shaft Seal: Silicon Carbide
  • Voltage: 120V AC
  • Phase: Single
  • NEC Cord Designation: SJTOW
  • Features: Intermittent Duty
  • GPM of Water @ 25 Ft. of Head: 63
  • Height: 13"
  • Max. Diameter Solids: 1/2 in
  • GPM of Water @ 20 Ft. of Head: 80
  • Switch Type: None
  • Shaft Seal Material - Pumps: Carbon Ceramic
  • Alarm: No
  • Duty: Continuous
  • Pump Body Material: Cast Iron
  • Diameter: 10"
  • Impeller Material - Pumps: Cast Iron
  • Pump HP: 3/4
  • Max. Dia. Solids: 1/2"
  • Alarm Included: No
  • GPM of Water @ 10 Ft. of Head: 101
  • Bearing Type: Upper and Lower Ball
  • GPM of Water @ 15 Ft. of Head: 92
  • Gauge/Conductor: 16/3
  • Item: Submersible Sump Pump
  • Voltage - Pumps: 120VAC
  • Mechanical Seal: SiC
  • Amps: 10.5 A
  • Amps - Pumps: 10.50
  • GPM of Water @ 5 Ft. of Head: 113
  • Max. Head - Pumps: 37 ft.
  • Max. Liquid Temp.: 104 Degrees F
  • Cord Length - Pumps: 15 ft.
  • Item - Sump Pumps: Submersible Sump Pump
  • GPM of Water @ 30 Ft. of Head: 43
  • Switch Type - Pumps: No Switch Included
  • Base Material: Cast Iron
  • Max Head - Pumps: 37 ft.
  • Discharge Gender: Female
  • Switch Electrical Connection: No Switch Included
  • Duty Cycle: Continuous
  • Overall Height: 13 in
  • Rated Voltage: 120V AC
  • Flow Rate @ 10 Ft. of Head: 101.0 gpm
  • Flow Rate @ 20 Ft. of Head: 80.0 gpm
  • Body Dia.: 10 in
  • Body Material: Cast Iron
  • Discharge: 1 1/2 in FNPT
  • Flow Rate @ 15 Ft. of Head: 92.0 gpm
  • Discharge Dia.: 1 1/2 in
  • Switch Actuation: No Switch Included
  • Discharge Standard: NPT
  • Flow Rate @ 5 Ft. of Head: 113.0 gpm
  • Country of Origin (subject to change): China

Description

Submersible Sump Pump, HP 3/4, Rated Voltage 120V AC, Hz 60 Hz, Amps 10.5 A, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon Ceramic, Flow Rate @ 5 Ft. of Head 113.0 gpm, Flow Rate @ 10 Ft. of Head 101.0 gpm, Flow Rate @ 15 Ft. of Head 92.0 gpm, Flow Rate @ 20 Ft. of Head 80.0 gpm, Max. Head 37.0 ft, Body Dia. 10 in, Overall Height 13 in, Discharge 1-1/2 in FNPT
