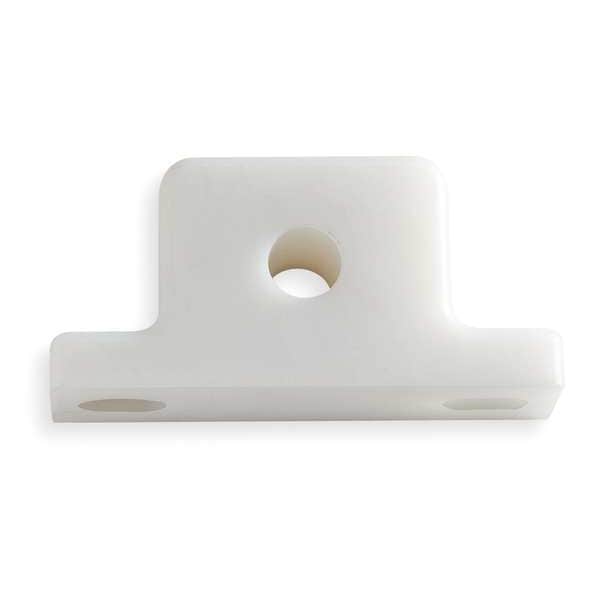

Dayton 1F620 UHMW-PE Pillow Block Bearing, Solid Rigid 1F620 - main

1F620 UHMW-PE Pillow Block Bearing, Solid Rigid

  • Mfr # 1F620

  • Zoro # G2727785

product price: $77.59
/ea
Free Shipping & Returns

Key Features

Bearing Insert Type
Sleeve
Bore Dia.
3/4 in
Shaft Locking Type
None
Bearing Housing Material Type
UHMW-PE
Bearing Insert Material
UHMW Polyethylene
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1F620
Zoro #
G2727785
UPC #
044861017005
Country of Origin
United States

Dimensions

Bore Dia.
3/4 in
Dimension G
1 1/2 in
Overall Height
2.5 in
Dimension C
5 1/4 in
Overall Width
1.5 in
Dimension A
1 5/16 in
Dimension J
7/16 in
Bolt Size
7/16 in
Dimension B
2 1/2 in
Dimension D
5 1/4 in
Dimension F
5/8 in
Dimension H
5/8 in
Dimension L
1 1/2 in
Dimension E
3 3/4 in
Overall Length
5.25 in
Base Height
0.75 in
Bore Diameter
3/4 in
Center Height
1 7/16 in
Bore Diameter Tolerance
-0.000/+0.003 in
Mount Hole Center-to-Center Length
3 3/4 in
Mount Hole Size
7/16 in

Details

Bearing Insert Type
Sleeve
Shaft Locking Type
None
Bearing Housing Material Type
UHMW-PE
Bearing Insert Material
UHMW Polyethylene
Bolt Hole Center-to-Center
3 3/4 in
Mounting Surface to Shaft Center
1 5/16 in
Series
PBUH-UH
Number of Bolts
2
Finish
None
Includes
Solid Self-Lubricating Bearing
Temp. Range
-60 Degrees to 180 Degrees F
Bearing Locking Type
None
Housing Material
UHMW Polyethylene
Standards
FDA, USDA
Locking Type
None
Item
Pillow Block Bearing
Dynamic Load Capacity
Max. PV 3000 lb
Max. Speed
4,500 RPM
Number of Mount Holes
2
Maximum PV
3,000 lb/sq in-fpm
Maximum Temperature
180 Degrees F
Application
Washdown
Minimum Temperature
-60 Degrees F
Features
Entire Bearing Unit is UHMW-PE, Ideal for Wash Down Applications in Wet or Harsh Environments or Where Sanitary Conditions are a Factor, Operating Temperature Range: -60 Degrees F to 180 Degrees F, Self-Lubricating Bearings Resist Corrosion, High Impact and Abrasion, UHMW-PE Bearings are USDA and FDA Approved, UHMW-PE Units are Interchangeable with Most Metal Units
Mount Type
Bolt-Through
Self Lubricating Bearing
Yes
Maximum Speed
4,500 RPM
System of Measurement
Inch
Bearing Material
UHMW-PE

Description

Pillow Block Bearing, Base Height 0.75 in, Bearing Insert Material UHMW Polyethylene, Bearing Insert Type Sleeve, Bore Diameter 3/4 in, Center Height 1 7/16 in, Housing Material UHMW Polyethylene, Maximum Speed 4,500 RPM, Maximum Temperature 180 Degrees F, Minimum Temperature -60 Degrees F, Mount Hole Center-to-Center Length 3 3/4 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2.5 in, Overall Length 5.25 in, Overall Width 1.5 in, Self Lubricating Bearing Yes
