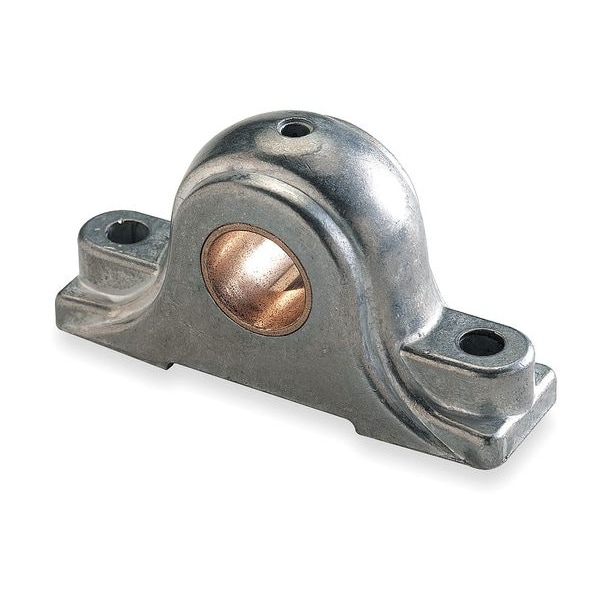

Dayton 1F628 Pillow Block Bearing 1F628 - main

1F628 Pillow Block Bearing

  • Mfr # 1F628

  • Zoro # G2984597

product price: $25.99
/ea

Key Features

Bearing Insert Type
Sleeve
Shaft Locking Type
None
Bearing Insert Material
Bronze
Series
PBDC-BR
Dimension B
1 7/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1F628
Zoro #
G2984597
UPC #
044861013250
Country of Origin
United States

Dimensions

Dimension B
1 7/8 in
Dimension L
1 1/8 in
Dimension A
1 in
Dimension C
3 9/16 in
Overall Width
1.125 in
Dimension E
2 13/16 in
Overall Height
1.875 in
Dimension D
3 9/16 in
Dimension J
5/16 in
Dimension H
5/8 in
Overall Length
3.562 in
Dimension F
5/8 in
Bore Diameter
5/8 in
Mount Hole Center-to-Center Length
2-51/64 in
Mount Hole Size
5/16 in
Center Height
1 in
Bore Diameter Tolerance
+0.003/+0.004 in
Base Height
0.63 in
Mounting Bolt Size
5/16 in

Details

Bearing Insert Type
Sleeve
Shaft Locking Type
None
Bearing Insert Material
Bronze
Series
PBDC-BR
Item
Pillow Block Bearing
Finish
Zinc Plated
Temp. Range
-5 Degrees to 220 Degrees F
Housing Material
Zinc Die Cast
Includes
Oiler Hole
Application
Lighter Duty
Minimum Temperature
-5 Degrees F
Maximum Speed
5,000 RPM
Maximum Temperature
220 Degrees F
Lubrication Openings
Oiler Hole
Mount Type
Bolt-Through
System of Measurement
Inch
Features
Operating Temperature Range: -5 Degrees F to 220 Degrees F, Porous Bronze Sleeve Bearings are Press-Fit in the Solid Zinc Die-Cast Housing with an Oil Hole for Lubrication, Sleeve Bearings Do not have Moving Parts and Assure a Low Friction, Smooth Motion Between Two Solid Surfaces, Zinc Die-Cast Housing is Non-Corrosive and Lightweight
Maximum PV
50,000 lb/sq in-fpm
Lubricant Material
20 Weight Non-Detergent Oil
Number of Mount Holes
2
Resistance Properties
Corrosion Resistant
Bearing Material
Bronze
Dynamic Radial Load Capacity
Max. PV 50,000 lb

Description

Pillow Block Bearing, Base Height 0.63 in, Bearing Insert Material Bronze, Bearing Insert Type Sleeve, Bore Diameter 5/8 in, Center Height 1 in, Lubricant Material 20 Weight Non-Detergent Oil, Maximum Speed 5,000 RPM, Maximum Temperature 220 Degrees F, Minimum Temperature -5 Degrees F, Mount Hole Center-to-Center Length 2 51/64 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 1.875 in, Overall Length 3.562 in, Overall Width 1.125 in, Shaft Locking Type None
